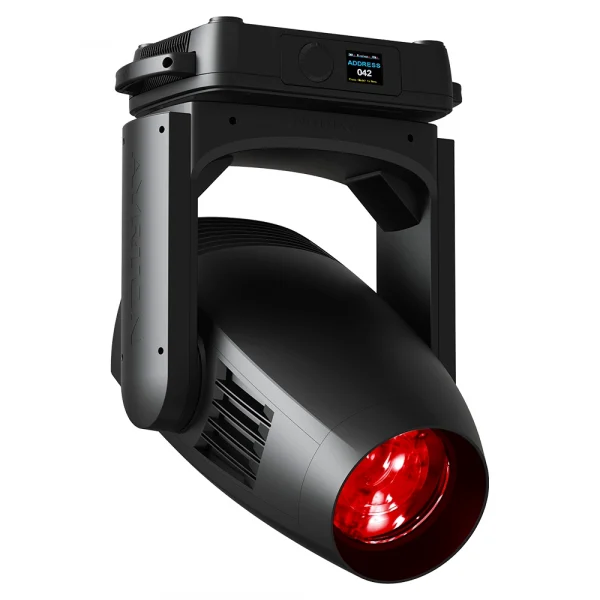

Ayrton_HURACAN-X-1000W-Profile_Moving-head-fixture-hangingAyrton_HURACAN-X-1000W-Profile_Moving-head-fixture-hanging

Ayrton – Huracán Profile

Ayrton

Huracán Profile is a marvel of technology that brings exceptional light output to a standard-equipment luminaire in a class by itself – a formidable graphical tool for enhancing creativity.y.

SKU: N/A Categories: , , , ,
Clear

Description

Fitted with a next-generation oversized cooling system and a high-efficiency 1000 W LED module, Huracán Profile produces record output of 51,000 lumens at a colour temperature of 7000 K when operating at a steady state. For this exceptional luminaire, Ayrton has developed an entirely new complex subtractive CMY colour mixing system that can generate billions of colours (patent pending) with a triple variable colour temperature corrector allows subtle adjustment from 2700 K to 15000 K and offers noticeable CRI improvement. Designed to project complex graphical effects, Huracán Profile boasts specifically developed optics that deliver an extremely uniform flat beam with no hot spot and reproduce high-definition images. The proprietary optical system, equipped with a 178 mm frontal lens, uses 13 lenses, producing an 10:1 zoom ratio and a zoom range of 6 ° to 60 °.

Huracán Profile offers an advanced framing section, which allows accurate positioning of four shutter blades on a 100% surface area in all positions, so that the user can frame any object regardless of the luminaire’s position.

Huracán Profile is provided with an amazingly complete graphical system with one 7-position wheel for interchangeable effects cassettes or gobos. The wheel is fitted with 5 rotating gobos and 2 effects cassettes that can create dynamic effects by superimposing two complementary inverted images in counter rotation (patent pending). A second interchangeable gobo wheel is equipped with 7 rotating gobos. A monochromatic multi-position effects wheel allows horizontal, vertical or axial scrolling for creating flame, water or radiant effects (patent pending). A multi-layer CMY wheel can generate multicolour effects. The gobos, cassettes and effects wheel are made of high-definition tempered glass. Additionally, standard features in Huracán Profile include a 15-blade iris diaphragm, a light and a heavy frost filter, 2 rotating prisms, a 5-facet circular and a 4-facet linear prism. Huracán Profile is the ultimate graphical tool for applications requiring power and refinement.

Features

  • Luminous Flux: 51,000 lm Huracán Profile S
  • Native CRI: >95 Huracán Profile TC
  • Zoom Aperture: 6 ° to 60 °
  • Front Lens: 178 mm
  • IP Rating: IP20
  • Weight: 46

Video

AYRTON – Huracán-X

Ayrton Huracán – 1,000W Profile Luminaire

Additional information

Weight 46 kg
Optics

13-elements 10:1 zoom high-resolution optic system
Beam aperture: 6° to 60°
Fast motorised linear zoom
Tempered anti-reflective coated lenses
178 mm frontal lens for greater performance
Light Source

75,000 lumens 8000 K white light engine
Total luminaire output: up to 53,000 lumens
Colour temperature output: 7000 K
CRI: greater than 70
Rated life (L70): up to 40,000 hours
Flicker-free source management suitable for TV applications and all video-recorded events
Movement

Extremely accurate positioning
Moving-head operated via either 8- or 16-bit resolution
High-resolution stepper motors operated via microprocessors to ensure extreme accuracy and smooth movement
Pan and tilt automatic repositioning
Moving-head range: 540° (pan), 270° (tilt)
Colours

Complex CMY colour mixing system capable of generating billions colours (patent pending)
Variable CTB colour temperature correction
Variable CTO colour temperature correction
Variable CTP colour temperature correction
Fixed colour wheel with six complementary colours
Gobos

Indexable rotating double layer cassette wheel with 2 effect cassettes and 5 high-precision glass gobos plus open position
Indexable rotating gobo wheel with 7 high-precision glass gobos, plus open position
Adjustable-speed rotating cassette and gobo in both directions
Gobo diameter: 30.0 mm
Image diameter: 25.0 mm
Gobo thickness: 1.1 mm
Framing

4 individually positionable shutter blades on a 100% surface area in all positions
Rotation of the framing system module: +/- 45°
Iris Diaphragm

Fast iris diaphragm with adjustable dynamic effects
Iris range: 15% to 100% open
Frost

2 frost filters: one light, one heavy
Effects

Monochromatic multi-position graphical animation effects wheel with continuous rotation in both directions
CMY & RGB colour graphic animation effect-wheel with continuous rotation in both directions
2 rotating and indexable prisms: one 5-facet circular, one 4-facet linear
Dimmer / Strobe

Electronic dimmer, allowing perfect light adjustment from 0 to 100% without colour variation
Strobe effect, with speed adjustment from 1 to 25 flashes per second
Software Features

Local DMX addressing of luminaire and optional parameters through its built-in LCD control panel
Remote DMX addressing of luminaire and optional parameters through a standard RDM DMX controller
Information menu including hour counter, temperature, software version
Hardware Features

Graphic LCD display for addressing and special functions settings, with flip function
Clicking jog wheel to set functions
Excess temperature protection
Integrated wireless CRMX TiMo™ RDM receiver from LumenRadio™
XLR 5 pin male and female connectors for DMX connection
etherCON RJ45 IN / OUT connectors for ArtNet™
powerCON TRUE1 male connector for power connection
Control

DMX 512 protocol, through DMX cable or a wireless system
DMX-RDM compatible
Stand-alone mode and Primary/Secondary modes
ArtNet™ & sACN protocol through Ethernet cable
Local control panel, with LCD display
Choice of 3 DMX modes (from 44 to 70 DMX channels)
Power Supply

Electronic supply with active PFC
120 to 240 Volts – 50/60 Hz
Power: 1,400 W maximum
Cooling System

Advanced liquid cooling system
Self-adjusting variable speed fans for quiet operation (Auto mode)
Selectable ventilation user’s modes with a new Silent Mode
Safety protection against temperatures excesses
Housing

Moving-head skeleton made of aluminium and steel metal plates
Base in die-cast aluminium
Heatsinks in aluminium and copper
Moulded covers in self-extinguishing fire retardant ABS PC (V0 class)
Two-side handles for transportation
Four heavy-duty feet for better stability
IP20 protection rating
Exterior finish: black (Carbon)
Installation

Fastening brackets system: two Omega ¼ turn brackets designed for use with standard clamps
Mounting points: eight ¼ turn locking fittings allowing installation of Omega brackets on luminaire
Safety cable attachment point
Operating Parameters

Operating positions: all (device on floor or fixed to a support)
Maximum permitted ambient temperature (Ta max): 45 °C (113 °F)
Minimum permitted ambient temperature (Ta min): -10 °C (14 °F)
Minimum usage distance: 2.0 m (6.56 ft)
Compliance

EU (EMC & LVD):
EMC Directive 2014/30/EU
LVD Directive 2014/35/EU
Size

Product: 486 x 811 x 294 mm (l x h x d)
Flight-case foam: 715 x 555 x 630 mm (l x h x d)
