Description

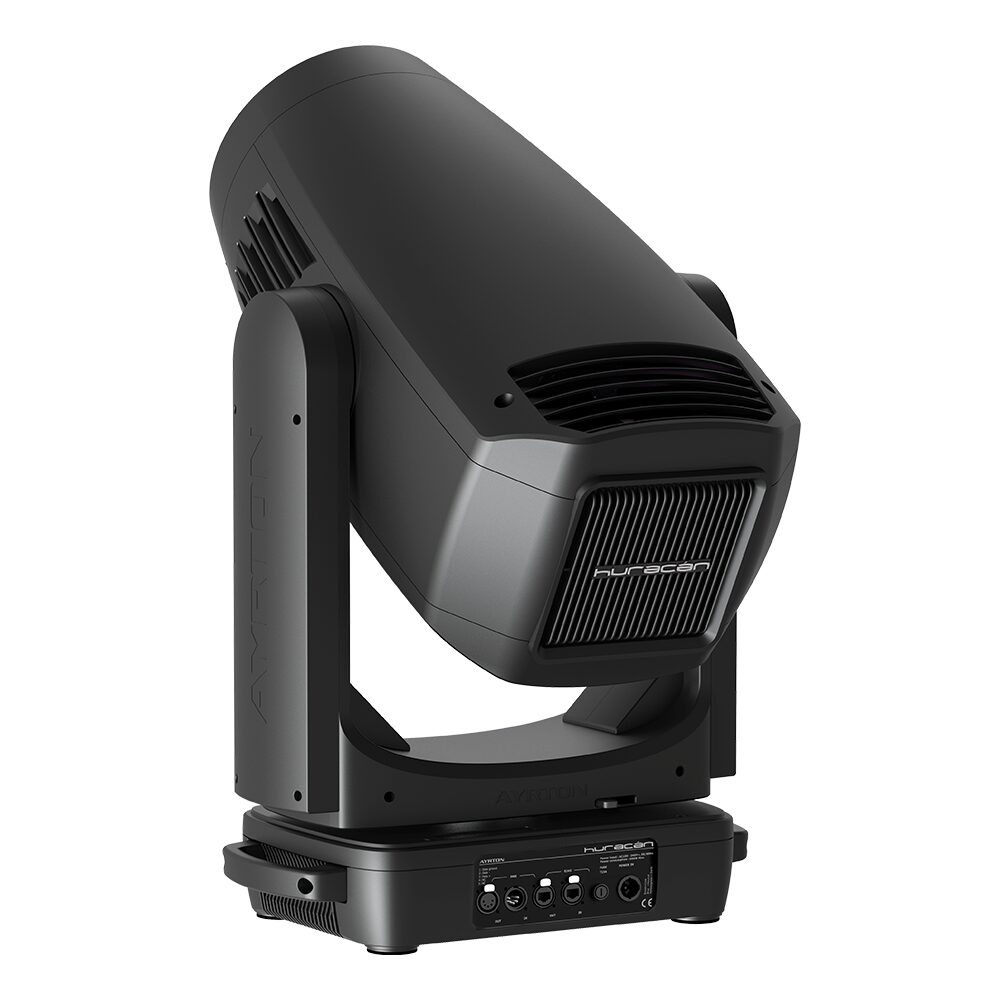

To achieve an ultra-intense beam from a LED source, Ayrton has added 225 mm-diameter, extra-large frontal optics weighing 7 kg. The proprietary optical system has 13 lenses, delivering a 15:1 zoom ratio and a zoom range of 3.5 ° to 53 °. Fitted with a next-generation, oversized liquid phase-change cooling system and a new high-efficiency 1000 W LED module, Huracán LT delivers record light output of 51,000 lumens at a colour temperature of 6700 Kelvin when operating at a steady state. Provided with multiple optical tools designed for shaping light, Huracán LT is factory-equipped with a removable high-transmission diffusion filter to erase the edge of the beam without changing its angle; a progressive linear frost system for precision adjustment of the desired diffusion level for creating artificial wash effects; and two combinable image-multiplying rotating prisms – one linear with four facets, and the other circular with five facets.
Huracán LT has adopted the same revolutionary complex colour mixing system as Huracán Profile offering a double saturation level that can obtain over a billion colours (patent pending) and a triple variable colour temperature corrector that allows subtle adjustment from 2700 K to 15000 K and offers noticable CRI improvement. Huracán LT features an advanced framing section, which enables accurate positioning of four shutter blades on a 100% surface area in all positions, so that the user can frame any object regardless of the luminaire’s position. The effects section includes two superimposed rotating gobo wheels each with seven HD glass gobos; a 15-blade iris diaphragm; a monochromatic multi-position effects wheel for horizontal, vertical or axial scrolling for creating flame, water or radiant effects (patent pending) and a CMY and RGB effects wheel for unique multicolour effects. Huracán LT, which combines exceptional light power and an ultra-intense beam with standard equipment in a class by itself, is a formidable tool for large venues, such as arenas and stadiums dedicated to major events.
Features
- Luminous Flux: 51,000 lm
- Native CRI> 70
- Zoom Aperture3.5 ° to 53 °
- Front Lens225 mm
- IP RatingIP20
