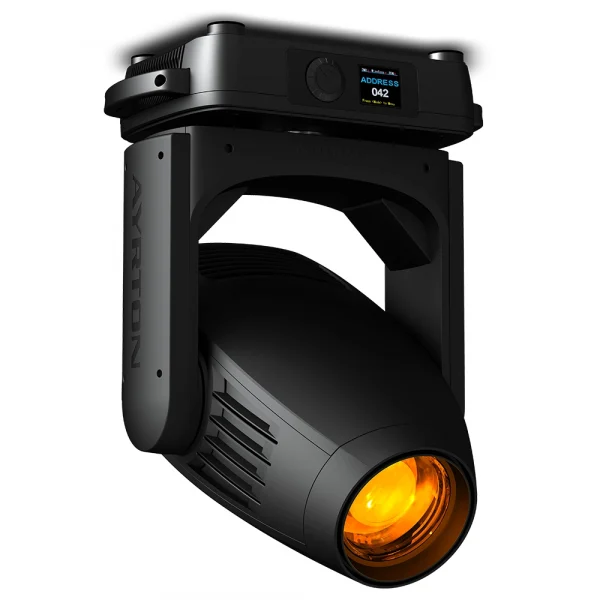

Ayrton - Ghibli Moving HEad Show in hanging OrientationAyrton - Ghibli Moving HEad Show in hanging Orientation

Ayrton – Ghibli

Ayrton

Ghibli is Ayrton’s first LED spot luminaire that is factory-equipped with a framing system designed to offer lighting designers unlimited creative possibilities without any compromise.

SKU: N/A Categories: , , , ,
Clear

Description

Fitted with a LED module using a high-output, low-etendue monochromatic light source calibrated at 7000 K, Ghibli delivers light output of 23,000 lumens in a highly compact format. The proprietary optical system, equipped with a 137 mm frontal lens, has 13 high-quality lenses, delivering an 8:1 zoom ratio and a zoom range of 7 ° to 56 °. The optics produce an extremely uniform flat beam with no hot spot. The selection of gobos and colours was made in collaboration with lighting designers to meet the needs of the entertainment industry.

Ayrton has concentrated its expertise into one, single fixture Ghibli to offer you a maximum of possibilities. Think versatile. Think Ghibli.

Standard features on Ghibli include a CMY colour mixing system combined with a variable CTO and a six-position complementary colour wheel to produce in an infinite palette of pastels and saturated colours. The luminaire is fitted with an entirely new filter for optimising the colour rendering index. The framing system allows each frame to be positioned with precision on a 100% surface area in all positions. The effects section includes two wheels with interchangeable HD glass gobos: one with seven rotating and the other with eight fixed gobos; a continuous dynamic effects wheel; an iris diaphragm; two frost filters and a five-facet rotating prism. Ghibi is equipped with a new, highly effective phase-change liquid cooling system using a heat pipe.

Features

  • Luminous Flux: 23,000 lm Ghibli S
  • Native CRI: > 90 Ghibli TC
  • Zoom Aperture: 7 ° to 56 °
  • Front Lens: 137 mm
  • IP Rating: IP20
  • Weight: 35.6 kg

Video

AYRTON – Ghibli – Presentation

Ayrton Ghibli – 600W Profile Luminaire

Additional information

Weight 35.6 kg
Optics

13 elements 8:1 zoom high-resolution optic system
Beam aperture: 7 ° to 56 °
Fast motorised linear zoom
Tempered anti-reflective coated lenses
137 mm frontal lens for greater performance
Light Source

GHIBLI S
36,000 lumens 8000 K white light engine
Total luminaire output: up to 23,000 lumens
Colour temperature output: 7000 K
CRI: greater than 70
GHIBLI TC
26,000 lumens 6500 K white light engine
Total luminaire output: up to 17,000 lumens
Colour temperature output: 5900 K
CRI: greater than 90
GHIBLI S & GHIBLI TC
Rated life (L70): up to 40,000 hours
Flicker-free source management suitable for TV applications and all video-recorded events
Movement

Extremely accurate positioning
Moving-head operated via either 8- or 16-bit resolution
High-resolution stepper motors operated via microprocessors to ensure extreme accuracy and smooth movement
Pan and tilt with automatic repositioning
Moving-head range: 540° (pan), 270° (tilt)
Colours

Sophisticated colour mix system providing CMY colour mixing
Variable CTO colour temperature correction
Fixed colour wheel with six complementary colours and High CRI filter
Framing system

4 individually positionable shutter blades on a 100% surface area in all positions
Rotation of the framing system module: +/- 45°
Iris diaphragm

Fast iris diaphragm with adjustable dynamic effects
Iris range: 15% to 100% open
Frost

2 frost filters: one light, one heavy
Effects

Graphic animation effect-wheel with continuous rotation in both directions
5-facet circular rotating and indexable prism
Dimmer / Strobe

Electronic dimmer, allowing perfect light adjustment from 0 to 100% without colour variation
Strobe effect, with speed adjustment from 1 to 25 flashes per second
Software features

Local DMX addressing of luminaire and optional parameters through its built-in LCD control panel
Remote DMX addressing of luminaire and optional parameters through a standard RDM DMX controller
Information menu including hour counter, temperature, software version
Hardware features

Graphic LCD display for addressing and special functions settings, with flip function
Clicking jog wheel to set functions
Excess temperature protection
Integrated wireless CRMX TiMo™ RDM receiver from LumenRadio™
XLR 5 pin male and female connectors for DMX connection
etherCON RJ45 IN / OUT connectors for ArtNet™ connection
powerCON TRUE1 male connector for power connection
Control

DMX 512 protocol, through DMX cable or a wireless system
DMX-RDM compatible
Stand-alone mode and Main/Follow modes
ArtNet™ & sACN protocol through Ethernet cable
Local control panel, with LCD display
Choice of 3 DMX modes (from 36 to 58 DMX channels)
Power Supply

Electronic supply with active PFC
100 to 240 Volts – 50/60 Hz
Power: 800 W maximum
Cooling System

Advanced liquid cooling system
Self-adjusting variable speed fans for quiet operation (Auto mode)
Selectable ventilation user’s modes with a new Silent Mode
Safety protection against temperatures excesses
Housing

Moving-head skeleton made of aluminium and steel metal plates
Base in die-cast aluminium
Heatsinks in aluminium and copper
Moulded covers in self-extinguishing fire retardant ABS PC (V0 class)
Two-side handles for transportation
Four heavy-duty feet for better stability
IP20 protection rating
Exterior finish: black (Carbon)
Installation

Fastening brackets system: two Omega ¼ turn brackets designed for use with standard clamps
Mounting points: eight ¼ turn locking fittings allowing installation of Omega brackets on luminaire
Safety cable attachment point
Operating Parameters

Operating positions: all (device on floor or fixed to a support)
Maximum permitted ambient temperature (Ta max): 45 °C (113 °F)
Minimum permitted ambient temperature (Ta min): -10 °C (14 °F)
Minimum usage distance: 2 m (6.56 ft)
Compliance

EU (EMC & LVD):
EMC Directive 2014/30/EU
LVD Directive 2014/35/EU
US (Safety & EMC):
UL 1573
FCC Part 15, Subpart B: 2018
Substance regulations
RoHS
REACH
CP65
Size

Product: 468 x 734 x 280 mm (l x h x d)
Flight-case foam: 655 x 590 x 555 mm (l x h x d)
