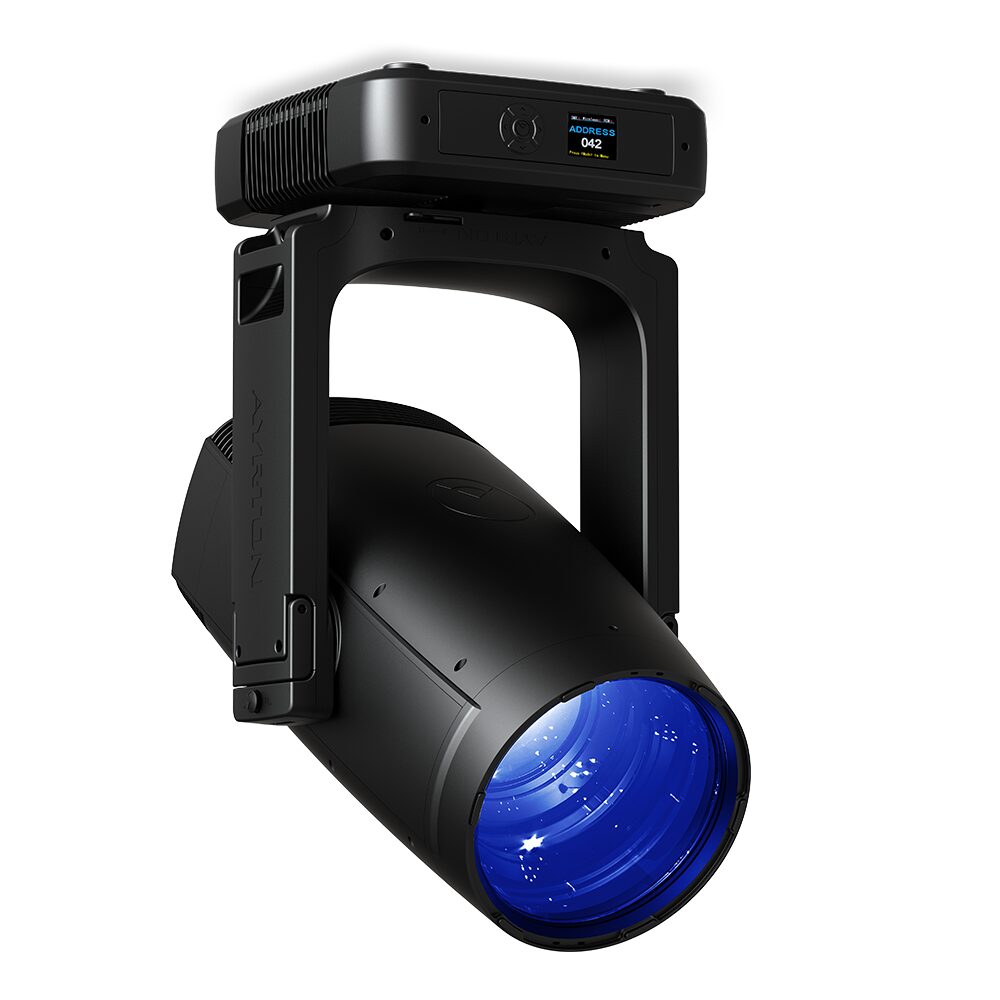

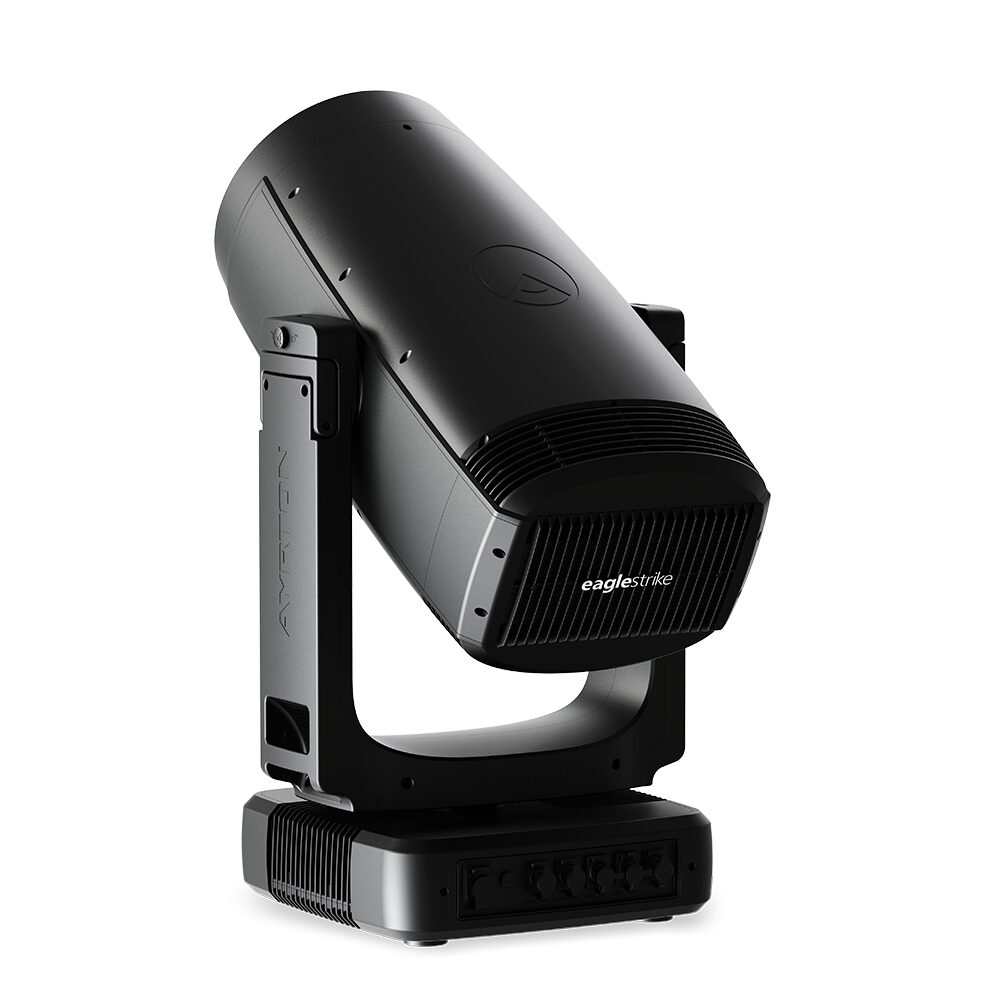

Ayrton – EagleStrike followmenal

Ayrton

EagleStrike was born from a bespoke request for a signature luminaire. It stands as the first LED-source followspot in Ayrton’s range, engineered for intensive outdoor use across long distances where precision is paramount.

Performance

  • Illuminance at 10m > 100,000 lx
  • Native CRI > 70
  • Zoom Aperture 2.9° to 43°
  • Front Lens 270 mm
  • IP Rating IP65
  • Weight 54.7 kg
SKU: N/A Categories: , , , , ,
Clear

Description

An optional camera enables EagleStrike to function as a remotely operated tracking spotlight. To create this uncompromising and unmatched extreme-luminaire, Ayrton developed an oversized 270 mm front lens weighing 7.7 kg, delivering an ultra-intense 2.9° beam. Its proprietary 13-lens optical system offers a 15:1 zoom ratio and a working range of 2.9° to 43°, with the ability to narrow the beam to 0.9° or 2.5° using dedicated gobo reducers. Equipped with a brand-new high-efficiency 1,200-watt LED module, EagleStrike outputs a luminous flux of 55,000 lm at a colour temperature of 6500 K, and achieves a record-breaking illuminance of over 100,000 lux at 10 metres. The fixture introduces an entirely new ultra-fast CMY flag-based colour mixing system, capable of matching the speed of Ayrton’s ‘ultimate’ series luminaires. A progressive CTO offers subtle tuning from 2900 K to 6500 K. The colour section includes six complementary colour filters, two CRI enhancement filters, one minus green, one gobo correction and one multi-colour filters.

EagleStrike features a full-framing system with precise blade positioning across 100 % of the field, and +/- 90° rotation, allowing users to frame any object regardless of the luminaire’s orientation.

The effects section combines two overlaying rotating gobo wheels, each equipped with seven gobos, a 15-blade iris diaphragm, and a single-colour effects wheel. Designed with a range of optical tools for sculpting the light, EagleStrike includes two Frost filters—one with light diffusion that softens edges without altering the beam angle, and a high-diffusion variant for wash applications—as well as two combinable rotating image-multiplier prisms: a 4-facet linear and a 5-facet circular. Its minimalist design integrates all waterproofing features while maintaining full access to internal components. A next-generation oversized cooling system ensures high efficiency, featuring three submersible fans located outside the sealed housing. Continuous rotation on the pan axis expands creative potential and facilitates use in automatic followspot mode. EagleStrike will exceed your expectations

Video

Ayrton – EagleStrike – Presentation

EagleStrike was born from a bespoke request for a signature luminaire…

Additional information

Weight 54.7 kg
Optics

13-element 15:1 zoom high-resolution optic system
Beam aperture: 2.9° to 43°
Beam reducer : 0.9° & 2.5°
Tempered anti-reflective coated lenses
Oversize 270 mm frontal lens for greater performance
Light Source

82,000 lumens white light engine
Total luminaire output: up to 55,000 lumens (integrating sphere measurement, Stage Fan mode)
Lux at 10 m: over 100,000 lx (narrow angle)
Colour temperature output: 6500 K
CRI: greater than 70
Rated life (L70): up to 40,000 hours
Flicker-free source management suitable for TV applications and all video-recorded events
Movement

Extremely accurate positioning
Moving-head operated via either 8- or 16-bit resolution
Pan and tilt automatic repositioning
Moving-head range: infinite (pan), 270° (tilt)
Colour

Sophisticated colour mix system providing CMY colour mixing
Variable CTO colour temperature correction
Fixed colour wheel with six complementary colours
Fixed colour wheel with two CRI optimisation filters, a minus green, a gobo correction and multicolour filters
Gobo

Indexable rotating gobo wheel with five high precision glass gobos, 2 beam reducers plus open position
Indexable rotating gobo wheel with five metal gobos, 2 multicolor filters, plus open position
Adjustable-speed rotating gobo in both directions
Gobo diameter: 30 mm
Image diameter: 19 mm
Gobo thickness: 1.1 mm (Glass gobo), 0.5 mm (Metal gobo), 2.2 mm (Multicolour gobo)
Framing System

4 individually positionable shutter blades on a 100% surface area in all positions
Rotation of the shutter blades module: +/- 90°
Iris Diaphragm

Fast iris diaphragm with adjustable dynamic effects
Iris range: 15% to 100% open
Frost

Light frost (1°) to soften the edge of the beam
Heavy frost (5°) for Wash effects
Effects

Focusable graphic animation effect-wheel with continuous rotation in both directions
2 combinable rotating and indexable prisms: one 5-facet circular, one 4-facet linear
Dimmer / Strobe

Electronic dimmer, allowing perfect light adjustment from 0 to 100% without colour variation
Strobe effect, with speed adjustment from 1 to 25 flashes per second
Software Features

Local DMX addressing of luminaire and optional parameters through its built-in LCD control panel
Remote DMX addressing of luminaire and optional parameters through a standard RDM DMX controller
Information menu including hour counter, temperature, software version
Hardware Features

Graphic LCD display for addressing and special functions settings, with flip function
5 menu buttons to set functions
Excess temperature protection
Integrated wireless CRMX TiMo RDM receiver from LumenRadio
IP65 XLR 5 pin male and female connectors for DMX connection
IP65 RJ45 IN / OUT connectors for ArtNet and sACN connection
IP65 RJ45 for optional NDI Camera
IP65 PowerCON TRUE1 TOP male connector for power connection
Option for an IP65 NDI Camera holder
Control

DMX 512 protocol, through IP65 DMX cable or a wireless system
DMX-RDM compatible
Stand-alone mode and Main/Follow modes
ArtNet & sACN protocol through Ethernet cable
Local control panel, with IP65 LCD display
Choice of 2 DMX modes (from 44 to 66 DMX channels)
Power Supply

Electronic power supply with active PFC
120 to 240 Volts – 50/60Hz
Power: 1,450 W maximum
Power: 1,295 W typical consumption at 230 V
Cooling System

Advanced high-performance cooling system
IP68 Self-adjusting variable speed fans for quiet operation (Auto mode)
Selectable ventilation user modes including Super Silent Mode
Safety protection against excess temperature
Housing

Moving-head skeleton made of aluminium and steel metal plates
Head in die-cast aluminium
Base in die-cast aluminium
Heatsinks in aluminium and copper
Arms moulded covers in self-extinguishing fire retardant ABS PC (V0 class)
Four-side handles for transportation
Four heavy-duty feet for better stability
IP65 protection rating
Exterior finish: black (Carbon)
Installation

Fastening bracket system: two Omega ¼ turn brackets designed for use with standard clamps
Mounting points: eight ¼ turn locking fittings allowing installation of Omega brackets on luminaire
Safety cable attachment point
Operating Parameters

Operating positions: all (device on floor or fixed to a support)
Maximum permitted ambient temperature (Ta max): 45°C (113°F)
Minimum permitted ambient temperature (Ta min): -20°C (-4°F)
Minimum usage distance: 6 m (19.68ft)
Compliance

EU (EMC & LVD):
EMC Directive 2014/30/EU
LVD Directive 2014/35/EU
Size

Product: 450 x 898 x 413 mm (l x h x d)
Flight-case foam: 770 x 690 x 560 mm (l x h x d)

Downloads

Data Sheet Download
User Guide Download
