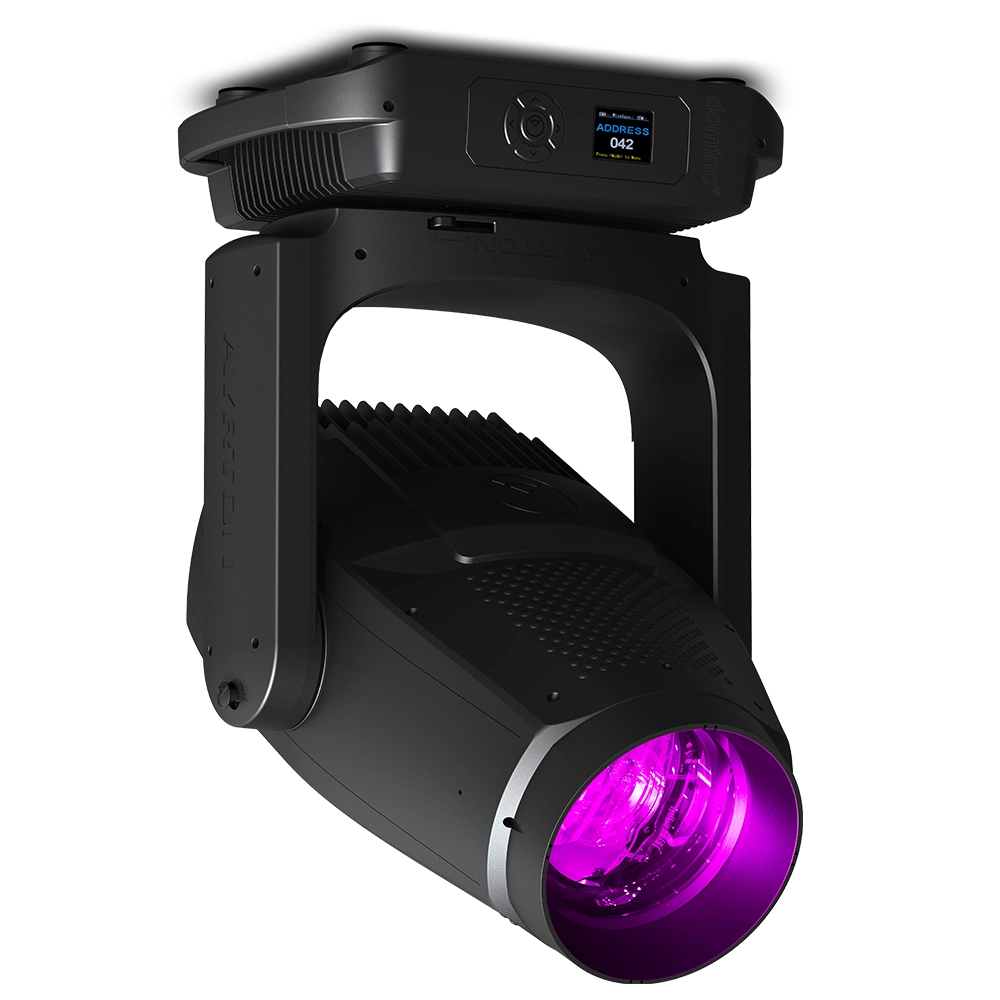

Ayrton - Domino Profile Moving Head in hanging orientationAyrton - Domino Profile Moving Head in hanging orientation

Ayrton – Domino Profile

Ayrton

A new member of Ayrton’s IP65 multi-function luminaire family designed for intensive outdoor use, Domino Profile is a marvel of technology that combines extraordinary light power with full-featured standard equipment.

SKU: N/A Categories: , , ,
Clear

Description

Equipped with an entirely new 1000 W monochromatic high-efficiency LED emitter calibrated at 8000 K, Domino Profile S can deliver powerful metallic white light with record output of 51,000 lumens at a colour temperature of 7000 K, when operating at a steady state. Domino Profile TC is specially designed for situations that require perfect colour rendition, it will amaze colour aficionados with its C.R.I. greater than 90 and extremely high TM30 readings, at a colour temperature of 6000 Kelvin. Designed around the exceptional optics of Huracán Profile, this luminaire was specifically developed to achieve an optimal resolution-to-performance-to-efficiency ratio. These optics deliver an extremely uniform flat beam with no hot spot and reproduce high-definition images impeccably. Fitted with a 178 mm frontal lens, the proprietary optical system uses 13 lenses, producing a 10:1 zoom ratio and a zoom range of 6 ° to 60 °. Designed to operate in the most extreme situations, Domino Profile can resist hot or cold temperatures, wind, rain, hail, salt fog, sand and dust. It can withstand arid environments, heavy rainfall, and sudden climatic variations.

Ayrton has included all the weatherproofing features of Perseo Profile in this new IP65 luminaire and given it the same minimalist design.

With its new high-efficiency power supply and die-cast aluminium frame, the luminaire uses the same base design in a reduced visual footprint. For maximum effectiveness, Domino Profile has a liquid cooling system fitted with six submersible fans outside its weatherproof enclosure. Feature-rich from the factory, Domino Profile includes a subtractive CMY colour mixing system combined with a variable CTO and a wheel with six complementary colours. The framing section allows accurate positioning of each shutter blade on a 100% surface area. The image section includes 14 interchangeable HD glass gobos on two wheels. The effects section contains two continuous dynamic effect-wheels, a CMY multi-layered wheel for creating multi-coloured effects, a standard monochromatic effect-wheel, a 15-blade iris diaphragm, two frost filters (one for light and one for heavy diffusion), two rotating prisms (one circular with 5 facets and one linear with 4 facets). Domino Profile is The Master of the Elements, ready for the most extreme conditions.

Features

  • Luminous Flux: 51,000 lm Domino Profile S
  • Native CRI: > 90 Domino Profile TC
  • Zoom Aperture: 6 ° to 60 °
  • Front Lens: 178 mm
  • IP Rating: IP65
  • Weight: 52 kg

Video

Ayrton – Domino – Presentation

Ayrton Domino – 1,000W IP65 Profile Luminaire

Additional information

Weight 52 kg
Optics

13-element 10:1 zoom high-resolution optic system
Beam aperture: 6 ° to 60 °
Fast motorised linear zoom
Tempered anti-reflective coated lenses
178 mm frontal lens for greater performance
Light Source

Domino Profile S
75,000 lumens 8000 K white light engine
Total luminaire output: up to 51,000 lumens
Colour temperature output: 7000 K
CRI: greater than 70
Domino Profile TC
56,000 lumens 7000 K white light engine
Total luminaire output: up to 36,400 lumens
Colour temperature output: 6500 K
CRI: greater than 90
Domino Profile S & Domino Profile TC
Rated life (L70): up to 40,000 hours
Flicker-free source management suitable for TV applications and all video-recorded events
Movement

Extremely accurate positioning
Moving-head operated via either 8- or 16-bit resolution
High-resolution stepper motors operated via microprocessors to ensure extreme accuracy and smooth movement
Pan and tilt automatic repositioning
Moving-head range: 540 ° (pan) & 263 ° (tilt)
Colours

Sophisticated colour mix system providing CMY colour mixing
Variable CTO colour temperature correction
Fixed colour wheel with six complementary colours
2 CRI and TM30 optimizer filters
Gobos

2 indexable rotating gobo wheels with 7 high-precision glass gobos, plus open position
Adjustable-speed rotating gobo in both directions
Gobo diameter: 30 mm
Image diameter: 25 mm
Gobo thickness: 1.1 mm
Framing System

4 individually positionable shutter blades on a 100% surface area in all positions
Rotation of the framing system module: +/- 60 °
Iris

Fast iris diaphragm with adjustable dynamic effects
Iris range: 15% to 100% open
Frost

2 frost filters: one light, one heavy
Effects

Focusable black & white graphic animation effect-wheel with continuous rotation in both directions
Focusable colour graphic animation effect-wheel with continuous rotation in both directions
2 rotating and indexable prisms: one 5-facet circular, one 4-facet linear
Dimmer / Strobe

Electronic dimmer, allowing perfect light adjustment from 0 to 100% without colour variation
Strobe effect, with speed adjustment from 1 to 25 flashes per second
Software Features

Local DMX addressing of luminaire and optional parameters through its built-in LCD control panel
Remote DMX addressing of luminaire and optional parameters through a standard RDM DMX controller
Information menu including hour counter, temperature, software version
Hardware Features

Graphic LCD display for addressing and special function settings, with flip function
5 menu buttons to set the functions
Excess temperature protection
Integrated wireless CRMX TiMo™ RDM receiver from LumenRadio™
Domino-IP65
IP65 XLR 5-pin male and female connectors for DMX connection
IP65 RJ45 IN / OUT connectors for ArtNet™ connection
IP65 powerCON TRUE1 male connector for power connection
Domino-IP66
DMX IN / OUT tails to bare end for IP66 DMX connection
Ethernet IN / OUT tails to bare end for IP66 ArtNet™ connection
Power tail to bare end for IP66 power connection
Control

DMX 512 protocol, through DMX cable or a wireless system
DMX-RDM compatible
Stand-alone mode and Main/Follow modes
ArtNet™ & sACN protocol through Ethernet cable
Local control panel, with IP65 LCD display
Choice of 3 DMX modes (from 44 to 66 DMX channels)
Power Supply

Electronic supply with active PFC
120 to 240 Volts – 50/60Hz
Power: 1,800 W maximum
Cooling System

Advanced liquid cooling system
IP68 self-adjusting variable speed fans for quiet operation (Auto mode)
Selectable ventilation user modes with a new Silent Mode
Safety protection against temperatures excesses
Housing

Moving-head skeleton made of die-cast aluminium
Base in die-cast aluminium
Heatsinks in aluminium and copper
Moulded covers in in die-cast aluminium
Two-side handles for transportation
Four heavy-duty feet for better stability
IP65 protection rating
Exterior finish: black (Carbon)
Installation

Fastening brackets system: two Omega ¼ turn brackets designed for use with standard clamps
Mounting points: eight ¼ turn locking fittings allowing installation of Omega brackets on luminaire
Safety cable attachment point
Operating Parameters

Operating positions: all (device on floor or fixed to a support)
Maximum permitted ambient temperature (Ta max): 45 °C (113 °F)
Minimum permitted ambient temperature (Ta min): -20 °C (-4 °F)
Minimum usage distance: 3 m (9.84 ft)
Compliance

EU (EMC&LVD)
EMC Directive 2014/30/EU
LVD Directive 2014/35/EU
US (Safety & EMC)
UL 1573
FCC Part 15, Subpart B: 2018
Substance regulations
RoHS
REACH
CP65
Size

Product: 490 x 841 x 330 mm (l x h x d)
Flight-case foam: 715 x 665 x 555 mm (l x h x d)
