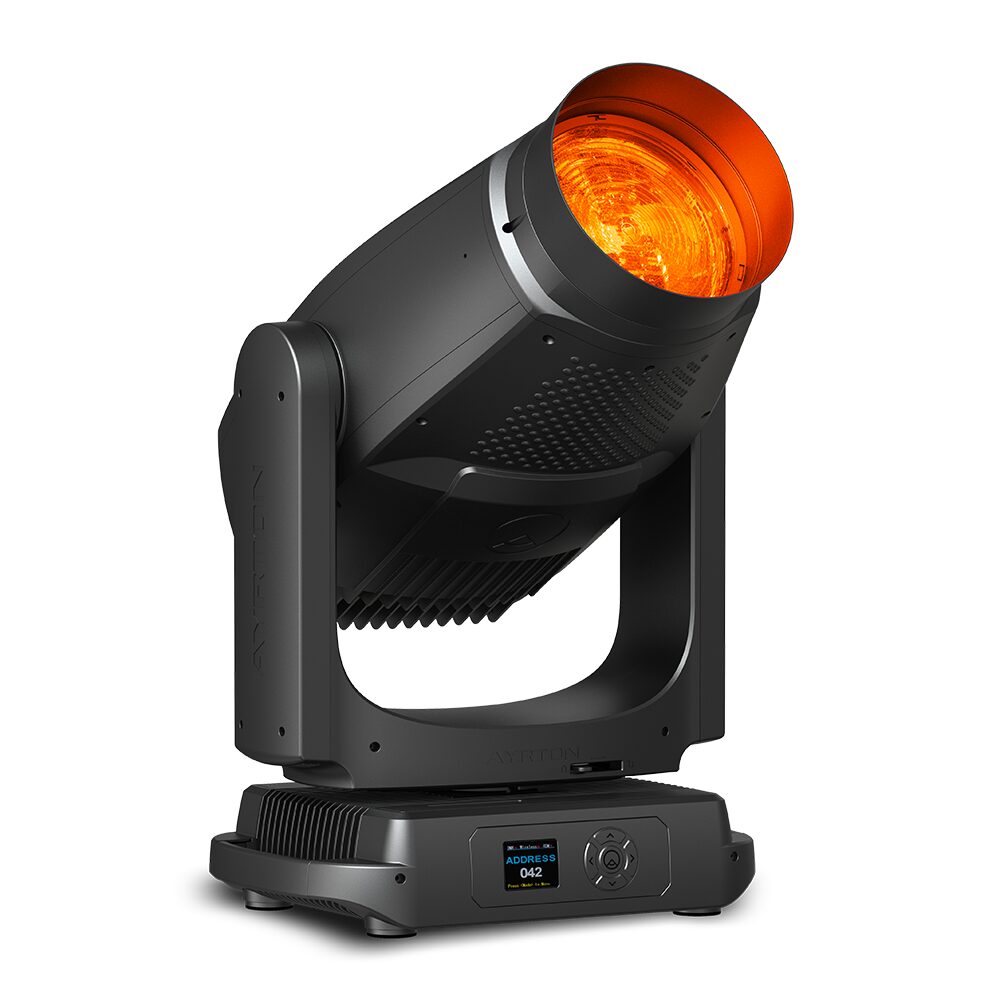

Ayrton - Domino Wash Front Right of Moving HeadAyrton - Domino Wash Front Right of Moving Head

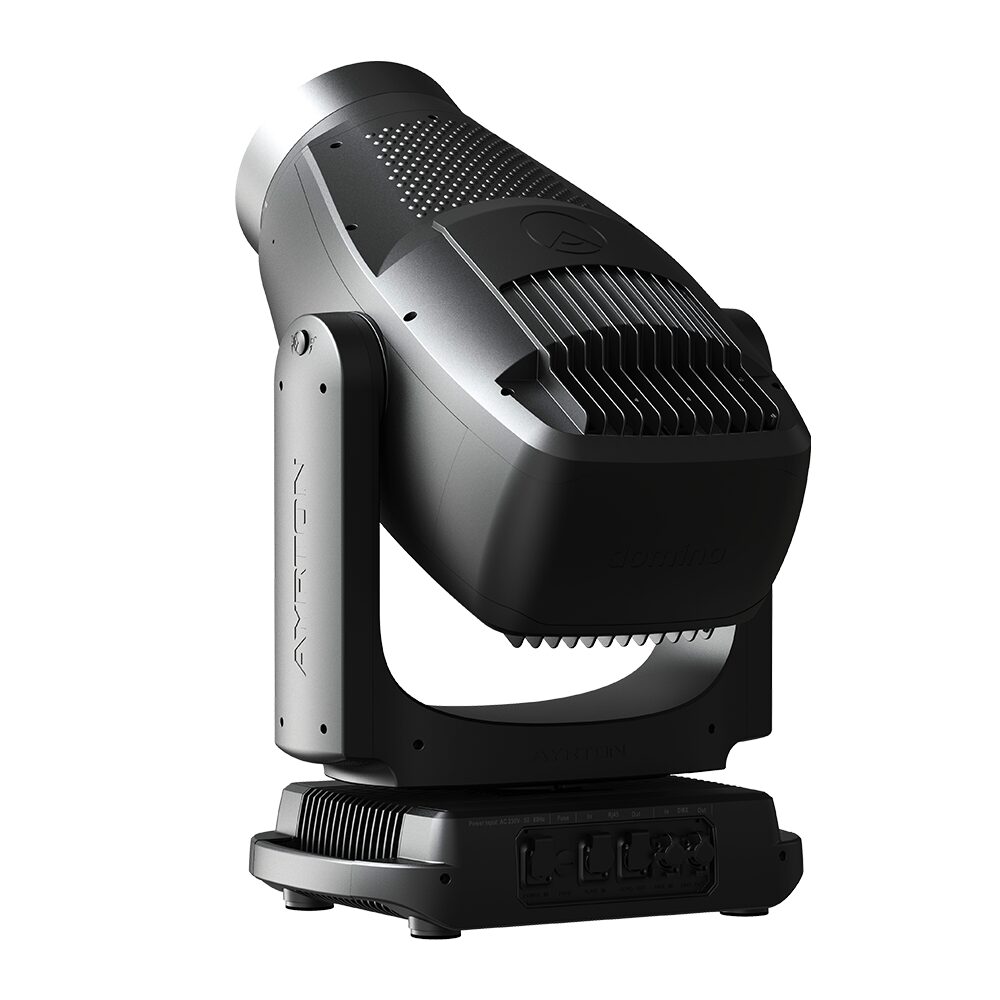

Ayrton – Domino Wash

Ayrton

For its first IP65 wash fixture developed for outdoor use, Ayrton has chosen a 210 mm Fresnel lens with a specific optical structure designed to accurately adapt the diffusion level according to your requirements.

SKU: N/A Categories: , , ,
Clear

Description

This optical combination that favours the use of framing shutter blades or geometric gobos significantly improves colour mix and can produce 10% more light than with a classic Fresnel lens F.O.S.™. Domino Wash opens up a whole new world of versatility. This luminaire is available in three versions – S, ST or TC – meant to cover all types of stage use. For shows that need cooler, metallic light, the “Stage” version provides a record luminous flux of 52,000 lumens, a colour temperature of 7000 K and a CRI of 70. The entirely new “Studio & Theatre” version is fitted with a new monochromatic LED source that delivers light output of 45,000 lumens and a D65 white point that allows perfect colour reproduction with a CRI greater than 80. For applications requiring perfect colour rendering, the “True Color” version offers a colour rendering index greater than 95 with extremely high TM30 values and a colour temperature of 6000 Kelvin.

The proprietary optical system of Domino Wash delivers a 12:1 zoom ratio and a zoom range of 6.2 ° at half peak to 75 ° at one-tenth peak.

This new luminaire adopts the complex colour mixing system of Huracán Wash, offering a double level of CMY saturation that can obtain 281 trillion colours and a triple corrector for variable colour temperature, allowing subtle adjustment from 2700 K to 15000 K and significant CRI improvement T.C.S.™. Domino Wash is factory-equipped with full features, including a framing section that allows accurate positioning of four shutter blades on a 100% surface area in all positions, so that the user can frame any object regardless of the luminaire’s position. Domino Wash is also equipped with a wheel of seven rotating glass gobos, a 15-blade iris diaphragm and an CMY & RGB animation wheel. Domino Wash has a liquid cooling system fitted with six submersible fans outside its weatherproof enclosure. An all-terrain luminaire developed for resisting hot or cold weather, wind, rain, hail, sand, dust, Domino Wash aims to create unprecedented, incomparable and simply stunning atmospheres. This professional smart luminaire is geared for concerts, performing arts, theme parks, and film shoots. Together with Domino Profile and Domino LT, Domino Wash completes an exceptional trilogy.

Features

  • Luminous Flux: 52,000 lm Domino Wash S
  • Native CRI: greater than 95 Domino Wash TC
  • Zoom Aperture: 6.2 ° to 75 °
  • Front Lens: 210 mm
  • IP Rating: IP65
  • Weight: 52 kg

Video

AYRTON – Domino Wash – Presentation

Ayrton Domino Wash – Classical IP65 9 Series

Additional information

Weight 52 kg
Optics

13-element 12:1 zoom high-resolution optic system
Beam aperture: 6.2 ° (half peak) to 75 ° (one-tenth peak)
Fast motorised linear zoom
Tempered anti-reflective coated lenses
210 mm Fresnel frontal lens
Light Source

Domino Wash S
80,000-lumen white light engine
Total luminaire output: up to 52,000 lumens (integrating sphere measurement, Auto Fan Mode)
Colour temperature output: 7000 K
CRI: greater than 70
Domino Wash ST
68,000-lumen white light engine
Total luminaire output: up to 45,000 lumens (integrating sphere measurement, Auto Fan mode)
Colour temperature output: 5800 K
CRI: greater than 80
Domino Wash TC
49,000-lumen white light engine
Total luminaire output: up to 33,900 lumens (integrating sphere measurement, Auto Fan mode)
Colour temperature output: 6000 K
CRI: greater than 95
Domino Wash (all versions)
Rated life (L70): up to 40,000 hours
Flicker-free source management suitable for TV applications and all video-recorded events
Movement

Extremely accurate positioning
Moving-head operated via either 8- or 16-bit resolution
High-resolution stepper motors operated via microprocessors to ensure extreme accuracy and smooth movement
Pan and tilt automatic repositioning
Moving head range: 540 ° (pan) & 262 ° (tilt)
Colours

Complex colour mixing system with a double CMY saturation level capable of generating trillions of colours (patent pending).
Variable CTB colour temperature correction
Variable CTO colour temperature correction
Variable CTP colour temperature correction
Fixed colour wheel with six complementary colours
Gobos

Indexable rotating gobo wheel with 7 high-precision glass gobos, plus open position
Adjustable-speed rotating gobo in both directions
Gobo diameter: 30 mm
Image diameter: 25 mm
Gobo thickness: 1.1 mm
Framing System

4 individually positionable shutter blades on a 100% surface area in all positions
Rotation of barndoor module: +/- 90 °
Iris Diaphragm

Fast iris diaphragm with adjustable dynamic effects
Iris range: 15% to 100% open
Frost

0% to 100% variable linear frost
Effects

CMY & RGB colour graphic animation effects-wheel with continuous rotation in both directions
Beam ovalising filter, indexable and rotatable
Dimmer / Strobe

Electronic dimmer allowing perfect light adjustment from 0 to 100% without colour variation
Strobe effect, with speed adjustment from 1 to 25 flashes per second
Software Features

Local DMX addressing of luminaire and optional parameters through its built-in LCD control panel
Remote DMX addressing of luminaire and optional parameters through a standard RDM DMX controller
Information menu including hour counter, temperature, software version
Hardware Features

Graphic LCD display for addressing and special functions settings, with flip function
5 menu buttons to set functions
Excess-temperature protection
Integrated wireless CRMX TiMo™ RDM receiver from LumenRadio™
IP65 XLR 5-pin male and female connectors for DMX connection
IP65 RJ45 IN / OUT connectors for ArtNet™ connection
IP65 PowerCON TRUE1 male and female connector for power connection
Control

DMX 512 protocol, through DMX cable or a wireless system
DMX RDM-compatible
Stand-alone mode and Master/Slave modes
ArtNet & sACN protocol through Ethernet cable
Local control panel, with IP65 LCD display
Choice of 3 DMX modes (from 37 to 61 DMX channels)
Power Supply

Electronic supply with active PFC
120 to 240 Volts – 50/60Hz
Power: 1,600 W maximum
Cooling System

Advanced liquid cooling system
IP68 Self-adjusting variable speed fans for quiet operation (Auto mode)
Selectable ventilation user modes with a new Super Silent Mode
Safety protection against excess temperature
Housing

Moving-head skeleton made of aluminium and steel metal plates
Base in die-cast aluminium
Heatsinks in aluminium and copper
Moulded covers in self-extinguishing fire retardant ABS PC (V0 class)
Two-side handles for transportation
Four heavy-duty feet for better stability
IP65 protection rating
Exterior finish: black (carbon)
Installation

Fastening-bracket system: two Omega ¼ turn brackets designed for use with standard clamps
Mounting points: eight ¼ turn locking fittings allowing installation of Omega brackets on luminaire
Safety-cable attachment point
Operating Parameters

Operating positions: all (device on floor or fixed to a support)
Maximum permitted ambient temperature (Ta max): 45 °C (113 °F)
Minimum permitted ambient temperature (Ta min): -20 °C (-4 °F)
Minimum usage distance: 3 m (9.84 ft)
Compliance

EU (EMC & LVD):
EMC Directive 2014/30/EU
LVD Directive 2014/35/EU
US (Safety & EMC)
UL 1573
FCC Part 15, Subpart B:2018
Substance regulations
RoHS
REACH
CP65
Size

Product: 490 x 821 x 330 mm (l x h x d)
Flight-case foam : 715 x 665 x 555 mm (l x h x d)
