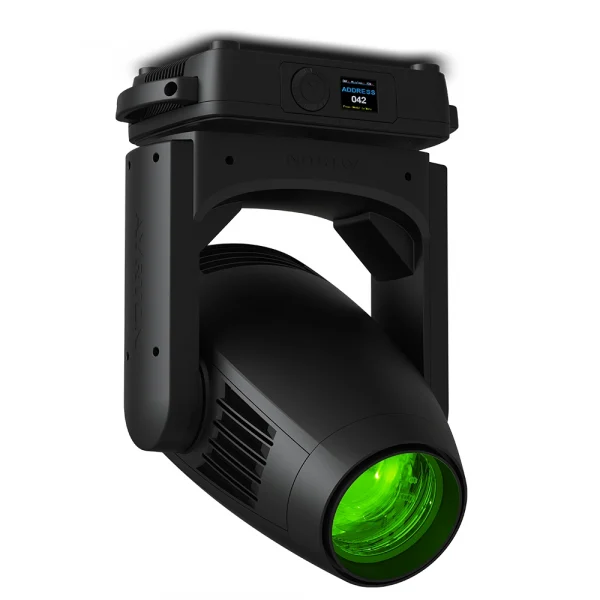

Ayrton - Diablo Profile Moving head in hanging orientationAyrton - Diablo Profile Moving head in hanging orientation

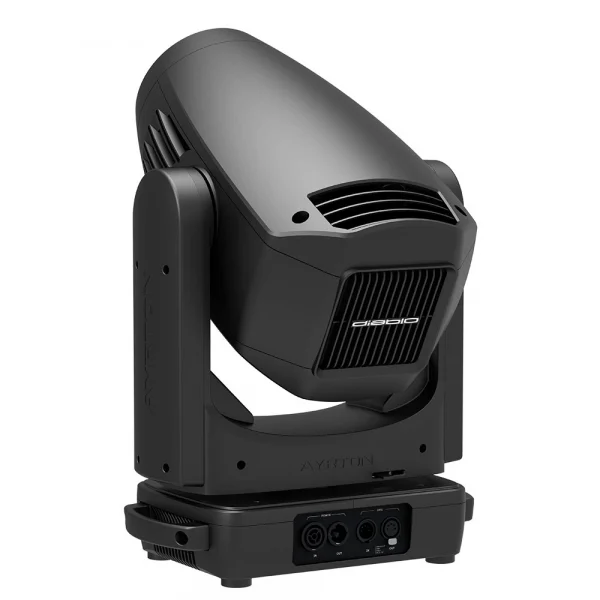

Ayrton – Diablo Profile

Ayrton

Ayrton’s latest innovation, Diablo Profile, is a versatile, feature-rich 300 W profile luminaire based on the ultra-compact Mistral format.

SKU: N/A Categories: , , , ,
Clear

Description

The company has taken on the ambitious challenge of making Diablo Profile the smallest, lightest and most efficient luminaire of its category. With a record output of 19,000 lumens and a total weight of 21.8 kg, Diablo Profile is a powerhouse of technology that will tempt the most demanding lighting designers. To achieve its objective, Ayrton has miniaturised the framing system while maximizing the performance level. As in other profile luminaires of the product line, the framing section allows accurate positioning of its four shutter blades on a 100% surface area in all positions, so that the user can frame any object regardless of the luminaire’s position. A new ultra-compact high-output 550 W power supply feeds eight additional motors in the framing system, fitting into the original Mistral format. Diablo Profile borrows the same 13-element proprietary optical system delivering an 7.5:1 zoom ratio with a zoom range of 7 ° to 53 °. The 119 mm frontal lens can produce an extremely uniform flat beam that can render images perfectly in all conditions and at any beam angle.

Diablo Profile is available in two versions: S and TC. Diablo Profile S, specially designed for stage applications, is equipped with a monochromatic LED light source that can generate extremely high output and metallic white light calibrated at 7000 K.

Diablo Profile TC is geared for applications that require perfect colour rendition, using a monochromatic light source with a native colour rendering index greater than 90 and high TM30 readings, at a colour temperature of 6000 K. Fully equipped at the factory, Diablo Profile includes a CMY colour mixing system combined with a progressive CTO and a wheel with seven complementary colours that produces an infinite palette of bright pastels and saturated colours. The effects section includes a wheel with seven interchangeable HD glass gobos, a continuous dynamic effects wheel, a 15-blade iris diaphragm, a heavy frost filter and a five-facet circular rotating prism. Diablo Profile has a highly efficient phase-change liquid cooling system using a heat pipe that includes a particularly effective ultra-silent ventilation mode, perfect for stage and studio applications.

Features

  • Luminous Flux: 19,000 Diablo Profile S
  • Native CRI: > 90Diablo Profile TC
  • Zoom Aperture: 7 ° to 53 °
  • Front Lens: 119 mm
  • IP Rating: IP20
  • Weight: 22 kg

Video

Ayrton – Diablo – Presentation

Smaller is remarkable better.

Additional information

Weight 22 kg
Optics

13-element 7.5:1 zoom high-resolution optic system
Beam aperture: 7 ° to 53 °
Fast motorised linear zoom
Tempered anti-reflective coated lenses
119 mm frontal lens for greater performance
Light Source

Diablo Profile S
26,500 lumens 8000 K white-light engine
Total luminaire output: up to 19,000 lumens
Colour temperature output: 7000 K
CRI: greater than 70
Diablo Profile TC
20,500 lumens 7000 K white-light engine
Total luminaire output: up to 14,000 lumens
Colour temperature output: 6500 K
CRI: greater than 90
Diablo Profile S & Diablo Profile TC
Rated life (L70): up to 40,000 hours
Flicker-free source management suitable for TV applications and all video-recorded events
Movement

Extremely accurate positioning
Moving-head operated with either 8- or 16-bit resolution
High-resolution stepper motors operated via microprocessors to ensure extreme accuracy and smooth movement
Pan and tilt with automatic repositioning
Moving-head range: 540 ° (pan) & 263 ° (tilt)
Colours

Sophisticated colour mix system providing CMY colour mixing
Variable CTO colour temperature correction
Fixed colour wheel with seven complementary colours
Gobos

Indexable rotating gobo wheel with 7 high-precision glass gobos, plus open position
Adjustable-speed rotating gobo in both directions
Gobo diameter: 25.5 mm
Image diameter: 20 mm
Gobo thickness: 1.1 mm
Framing System

4 individually positionable shutter blades
Rotation of the framing system module: +/- 45 °
Iris Diaphragm

Fast iris diaphragm with adjustable dynamic effects
Iris range: 15% to 100% open
Frost

Light frost filter
Heavy frost filter (optional, included)
Effects

Graphic animation effect-wheel with continuous rotation in both directions
5-facet circular indexable rotating prism
Dimmer / Strobe

Electronic dimmer, allowing perfect light adjustment from 0 to 100% without colour variation
White or colour strobe effect, with speed adjustment from 1 to 25 flashes per second
Software Features

Local DMX addressing of luminaire and optional parameters through a built-in LCD control panel
Remote DMX addressing of luminaire and optional parameters through a standard RDM DMX controller
Information menu including hour counter, temperature, software version
Hardware Features

Graphic LCD display for addressing and special functions settings, with flip function
Clicking jog wheel to set functions
Excess-temperature protection
Integrated wireless CRMX TiMo™ RDM receiver from LumenRadio™
XLR 5-pin male and female connectors for DMX connection
powerCON TRUE1 male and female connectors for power connection
Control

DMX 512 protocol, through DMX cable or a wireless system
DMX-RDM compatible
Stand-alone mode and Main/Follow modes
Local control panel, with LCD display
Choice of 3 DMX modes (from 34 to 56 DMX channels)
Power Supply

Electronic supply with active PFC
100 to 240 Volts – 50/60 Hz
Power: 550 W maximum
Cooling System

Advanced liquid cooling system
Self-adjusting variable speed fans for quiet operation (Auto mode)
Selectable ventilation user modes including a new Silent Mode
Safety protection against temperatures excesses
Housing

Moving-head skeleton made of aluminium and steel metal plates
Base in die-cast aluminium
Aluminium and copper heatsinks
Moulded covers in self-extinguishing fire retardant ABS PC (V0 class)
Two-side handles for transportation
Four heavy-duty feet for better stability
IP20 protection rating
Exterior finish: black (Carbon)
Installation

Fastening-bracket system: two Omega ¼ turn brackets designed for use with standard clamps
Mounting points: four ¼ turn locking fittings allowing installation of Omega brackets on luminaire
Safety-cable attachment point
Operating Parameters

Operating positions: all (device on floor or fixed to a support)
Maximum permitted ambient temperature (Ta max): 45 °C (113 °F)
Minimum permitted ambient temperature (Ta min): -10 °C (14 °F)
Minimum usage distance: 1.5 m (4.92 ft)
Compliance

EU (EMC & LVD):
EMC Directive 2014/30/EU
LVD Directive 2014/35/EU
US (Safety & EMC):
UL 1573
FCC Part 15, Subpart B: 2018
Substance regulations
RoHS
REACH
CP65
Size

Product: 365 x 591 x 208 mm (l x h x d)
Flight-case foam: 430 x 660 x 280 mm (l x h x d)
