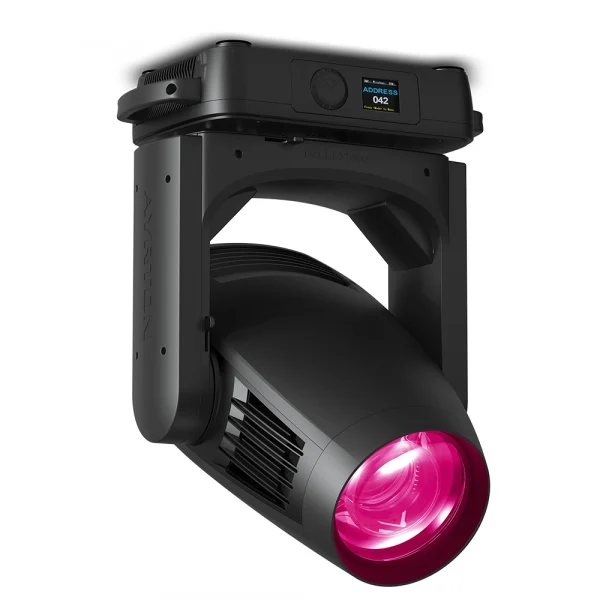

Ayrton - Bora Moving Head in Hanging orentationAyrton - Bora Moving Head in Hanging orentation

Ayrton – Bora

Ayrton

Ayrton has developed Bora, its new feature-packed 750 W wash luminaire, using a radical approach.

SKU: N/A Categories: , , , ,
Clear

Description

Its specific function is to establish the perfect atmosphere for your creative design. Fitted with a frontal 178 mm spherical lens, the proprietary optical system using 13 high-quality lenses was developed specifically for “wash” applications. It features an 8:1 zoom ratio for a wide zoom range from 8 ° to 64 °. The optics produces an extremely uniform flat beam with no hot spot, ensuring a perfectly homogeneous colour mix regardless of the colour combination selected. Bora comes in two versions, each to meet the specific requirements of lighting professionals. Bora S is designed for scenic applications. It is equipped with a new LED module calibrated at 8000 K, delivering powerful metallic white light with record-breaking output of 40,000 lumens. Devised specifically for applications that require perfect colour reproduction, Bora TC is equipped with an entirely new LED module using a monochromatic light source calibrated at 6200 K with a native colour rendering index greater than 90, and extremely high TM30 readings.

Wonderfully sleek and compact, Bora S and Bora TC are examples of meticulous workmanship.

Feature-rich from the factory, Bora includes a CMY colour mixing system, which, combined with a variable CTO and two wheels with six complementary colours each, produces an infinite palette of vivid pastels and saturated colours. The framing section allows accurate positioning of four shutter blades on a 100% surface area in all positions, so that the user can frame any object regardless of the luminaire’s position. Bora is also factory-equipped with a wheel holding six rotating gobos specially designed for wash-type applications, a variable linear frost and a 15-blade iris diaphragm. Like all Ayrton luminaires, Bora has a phase-change liquid cooling system using a heat pipe that includes a particularly effective silent ventilation mode. Bora comes in two variants to accommodate all types of professional use. Bora S is particularly suitable for situations requiring a great deal of light output such as concerts or other live entertainment. Designed for total versatility, Bora TC is ideal for applications that call for impeccable colour reproduction, such as fashion shows or car shows.

Features

  • Luminous Flux: 40,000 lm Bora S
  • Native CRI: > 90 Bora TC
  • Zoom Aperture: 8 ° to 64 °
  • Front Lens: 178 mm
  • IP Rating: IP20
  • Weight: 37.8 kg

Video

AYRTON – Bora – Presentation

Ayrton Bora – 750W Wash Luminaire

Additional information

Weight 37.8 kg
Optics

13-element 8:1 zoom in high-resolution optic system
Beam aperture: 8 ° to 64 °
Fast motorised linear zoom
Tempered anti-reflective coated lenses
178 mm frontal lens for greater performance
Light Source

Bora S
60,000 lumens 8000 K white light engine
Total luminaire output: up to 40,000 lumens
Colour temperature output: 6800 K
CRI: greater than 70
Bora TC
48,000 lumens 7000 K white light engine
Total luminaire output: up to 31,000 lumens
Colour temperature output: 6200 K
CRI: greater than 90
Bora S & Bora TC
Rated life (L70): up to 40,000 hours
Flicker free sources management suitable for TV applications and all video-recorded events
Movement

Extremely accurate positioning
Moving head operated via either 8 or 16 bit resolution
High-resolution stepper motors operated via microprocessors to ensure extreme accuracy and smooth movements
Pan and tilt with automatic repositioning
Moving-head range: 540 ° (pan) & 262 ° (tilt)
Colours

Sophisticated colour mix system providing CMY colour mixing
Variable CTO colour temperature correction
2 fixed colour wheels with six complementary colours each
Gobos

Indexable rotating gobo wheel with 6 gobos plus open position
Adjustable-speed rotating gobo in both directions
Gobo diameter: 34.3 mm
Image diameter: 25 mm
Bandoors

4 individually positionable shutter blades on a 100% surface area in all positions
Rotation of the framing system module: +/- 45 °
Iris Diaphragm

Fast iris diaphragm with adjustable dynamic effects
Iris range: 15% to 100% open
Frost

0% to 100% variable linear frost
Dimmer / Strobe

Electronic dimmer, allowing perfect light adjustment from 0 to 100% without colour variation
Strobe effect, with speed adjustment from 1 to 25 flashes per second
Software Features

Local DMX addressing of luminaire and optional parameters through its built-in LCD control panel
Remote DMX addressing of luminaire and optional parameters through a standard RDM DMX controller
Information menu including hour counter, temperature, software version
Hardware Features

Graphic LCD display for addressing and special functions settings, with flip function
Clicking jog wheel to set functions
Excess temperature protection
Integrated LumenRadio™ wireless CRMX TiMo™ RDM receiver
XLR 5 pin male and female connectors for DMX connection
etherCON RJ45 IN / OUT connectors for ArtNet™ connection
powerCON TRUE1 male connector for power connection
Control

DMX 512 protocol, through DMX cable or wireless system
DMX-RDM compatible
Stand-alone mode and Main/Follow modes
ArtNet™ & sACN protocol through Ethernet cable
Local control panel, with LCD display
Choice of 3 DMX modes (from 30 to 52 DMX channels)
Power Supply

Electronic supply with active PFC
120 to 240 Volts – 50/60 Hz
Power: 1,150 W maximum
Cooling System

Advanced liquid cooling system
Self-adjusting variable speed fans for quiet operation (Auto mode)
Selectable ventilation user’s modes with a new Silent Mode
Safety protection against temperatures excesses
Housing

Moving-head skeleton made of aluminium and steel metal plates
Base in die-cast aluminium
Heatsinks in aluminium and copper
Moulded covers in self-extinguishing fire retardant ABS PC (V0 class)
Two-side handles for transportation
Four heavy-duty feet for better stability
IP20 protection rating
Exterior finish: black (Carbon)
Installation

Fastening brackets system: two Omega ¼ turn brackets designed for use with standard clamps
Mounting points: eight ¼ turn locking fittings allowing installation of Omega brackets on luminaire
Safety-cable attachment point
Operating Parameters

Operating positions: all (device on floor or fixed to a support)
Maximum permitted ambient temperature (Ta max): 45 °C (113 °F)
Minimum permitted ambient temperature (Ta min): -10 °C (14 °F)
Minimum usage distance: 2 m (6.56 ft)
Compliance

EU (EMC & LVD):
EMC Directive 2014/30/EU
LVD Directive 2014/35/EU
US (Safety & EMC):
UL 1573
FCC Part 15, Subpart B: 2018
Substance regulations
RoHS
REACH
CP65
Size

Product: 494 x 737 x 280 mm (l x h x d)
Flight-case foam: 655 x 590 x 555 mm (l x h x d)
