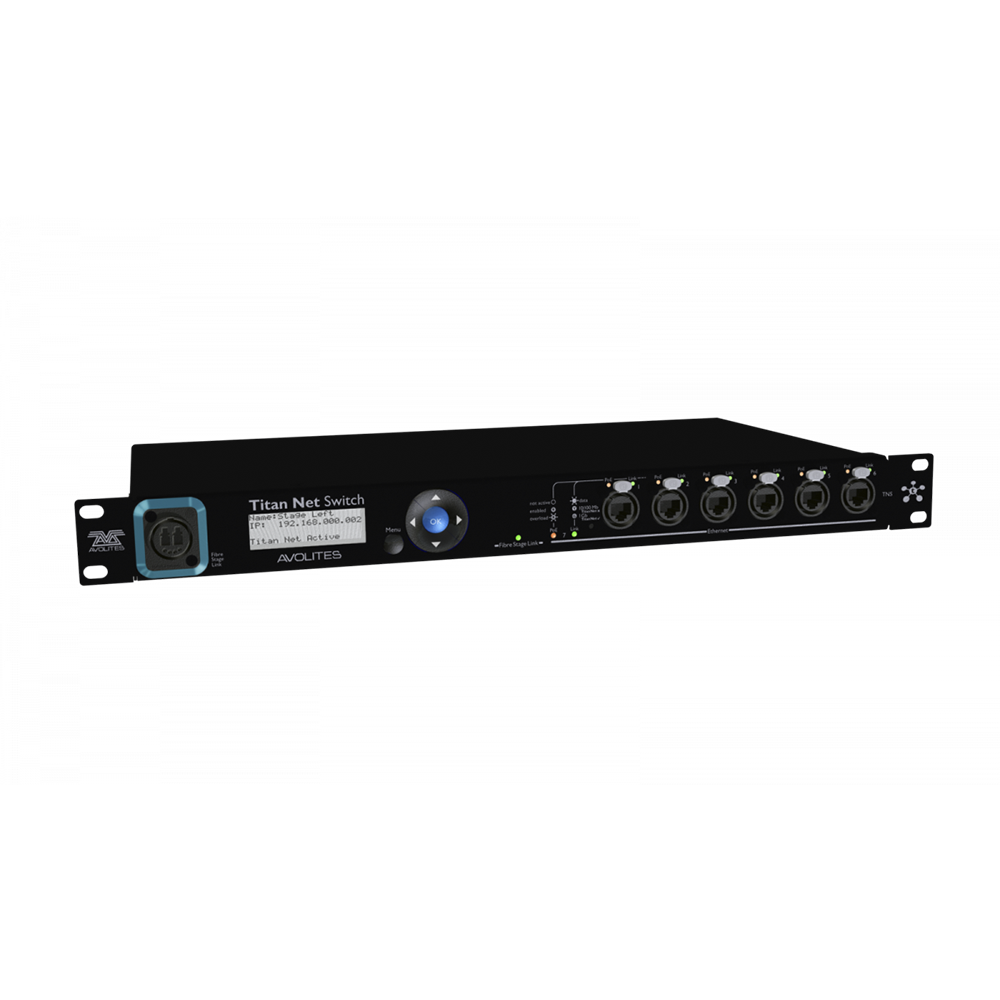

Avolites – Titan Net Switch

Avolites

The Optical TNS is ideal for connecting FOH to stage over large distances.

SKU: 30-01-1800 Categories: , ,

Description

The Optical TNS is ideal for connecting FOH to stage over large distances.

Features

  • Cat5E Ethernet cables can be used for distances under 100m
  • Optical input for fibre connections over distances exceeding 100m
  • 1 Gigabit network switch with built in UPS to ensure the stability and resilience.
  • Pre-configured for lighting data
  • Rugged 19″ rack-mount housing
  • EtherCon connectors for show-critical reliability
  • OpticalCon Duo fibre optic port
  • Front panel interface for switch configuration

Additional information

Weight

Approximate product weight 6 Kg / 13.2 lbs
Approximate product weight Boxed as shipped 6.8 Kg / 15 lbs
Electrical

The minimum and maximum voltage ratings are: 90-240V AC ±10% Single phase with the following connections:
Phase, Neutral and PE (protective earth)
Mains frequency 50-60hz ±10%
Power consumption Max 40W, 0.5~0.3A (110~240V AC)
Enviromental

Max humidity is 95% relative humidity non-condensing
Operating temperature range 0-40 °C or 32-104°F
Storing temperatures -15- 50°C or 5-122°F
Do not operate the TNS if the humidity and ambient temperature cause condensation on or inside the product, allow the product to dry first before connecting to the mains supply.
Do not obstruct the ventilation on the sides
Nominally the server can produce 15W of heat (No PoE load)
The airflow through the TNS is approximately 1.1 CFM, and directed left to right

Downloads

User Guide Download
