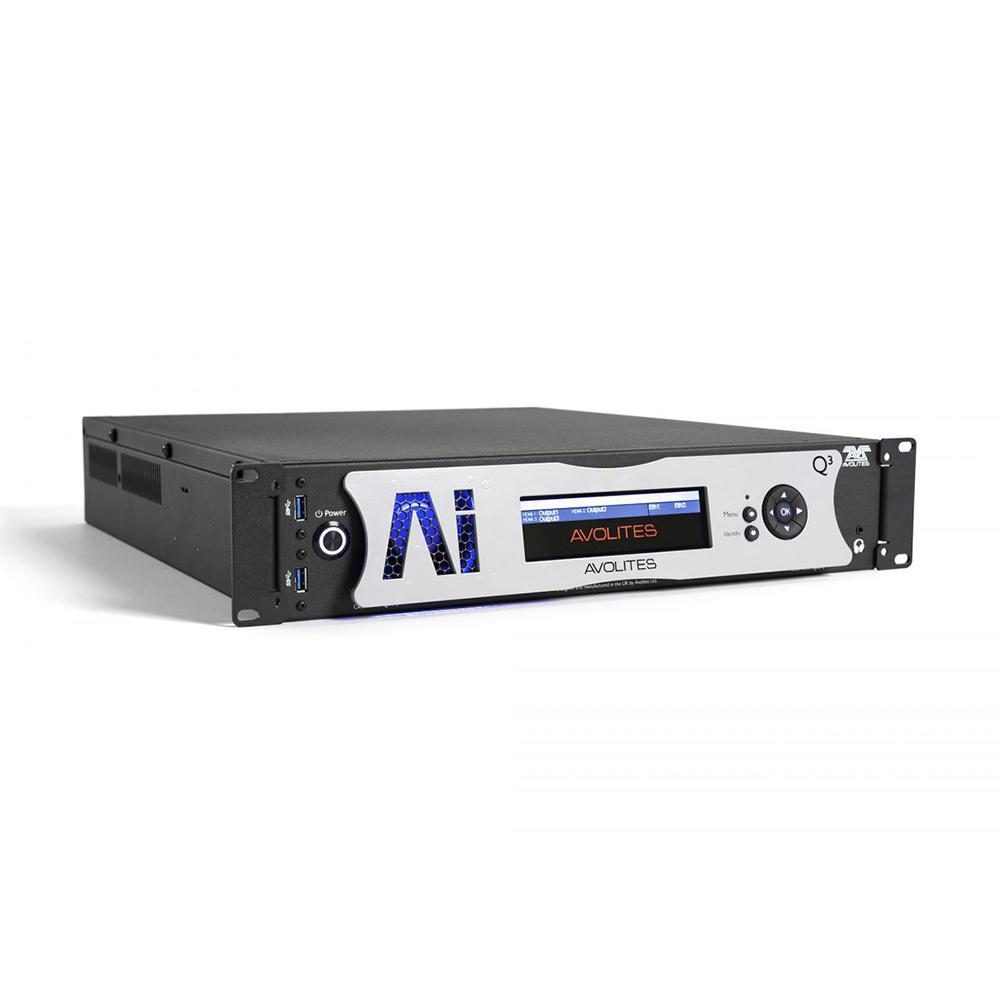

Avolites - Q3 Media Server Front FaceAvolites - Q3 Media Server Front Face

Avolites – Q3 Media Server

Avolites

The Q3 is a small server with big features, including hardware EDID, 1TB of NVMe media storage and 1 x 4K and 2 x HD outputs.

SKU: 31-31-0301 Categories: , ,

Description

The Avolites Ai Q3 is a small server with big features, including hardware EDID, 1TB of NVMe media storage and 1 x 4K and 2 x HD outputs. The Q3 is the perfect solution to power live events, installs and anywhere else that live video manipulation is required.

Features

  • 1 x 4k and 2 x HD outputs, plus a dedicated GUI output
  • Hardware EDID on all outputs
  • Front panel screen for configuring outputs
  • Node-based programming for flexibility with Salvation
  • Send or recieve video over IP with NDI® by NewTek
  • 3D projection mapping
  • Supports Notch (licence required)
  • Easily set-up projector blending with AutoBlend
  • AiM media transcoder
  • Synergy with Avolites Titan

Video

Avolites New Media Server: Q3

The Q3 is a compact and super-powerful media server to further strengthen the Ai range.

Additional information

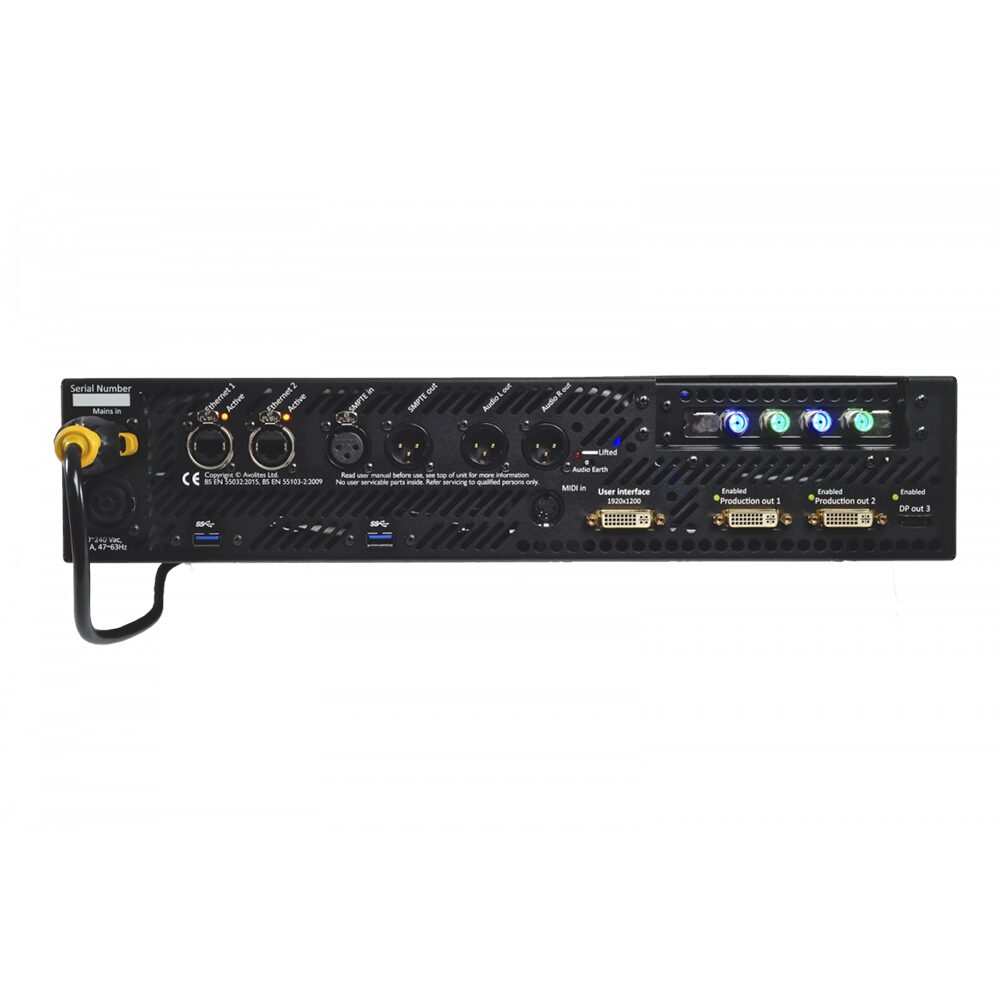

Connectivity

–
Production Outputs

1 x 4k & 2 x HD HDMI 2.0
outputs at 60 fps
GUI Outputs

HDMI 1920 x 1200
Audio

Audio out L&R Balanced XLR
SMPTE Timecode XLR

In/Thru
Supported Protocols

1 x 1 Gigabit LAN
Network Capacity

2 x 1GbE
MIDI

1 x DIN 5 MIDI Input
Data / Perphierals

4 x USB 3.0 Type-A
Genlock

Optional
Capture Cards

Up to 4 x 3G-SDI
OR 2 x HDMI
Hardware Specification

–
Voltage

100 – 240VAC, 50-60Hz
Power Consumption

275W, 4~2.8A (110~240V AC) (max)
Thermal Data: 933 BTU/h
Operating System

Windows 10 IoT Enterprise
CPU

Intel Core i5
Tolerances

Operating temperature range:
0-40 °C or 32-104°F
Max humidity: 95% relative humidity
non-condensing
Mount System

19” 2U x 486mm depth
EDID Management

Hardware EDID managed HDMI
2.0 outputs
GPU

AMD Radeon ProWX 7100
Storage

1TB NVMe
Physical Specification

–
Unit Dimensions

490 x 520 x 88mm
(19.29” x 20.47” x 3.46”)
(Including rack ears)
Packed Dimensions

655mm x 600mm x 290mm
(25.8” x 23.7” x 10.7”)
Rack Units

2
Unit Weight

11 Kg / 24.3 lbs
Packed Unit Weight

12.5 Kg / 27.6 lbs

Downloads

Data Sheet Download
