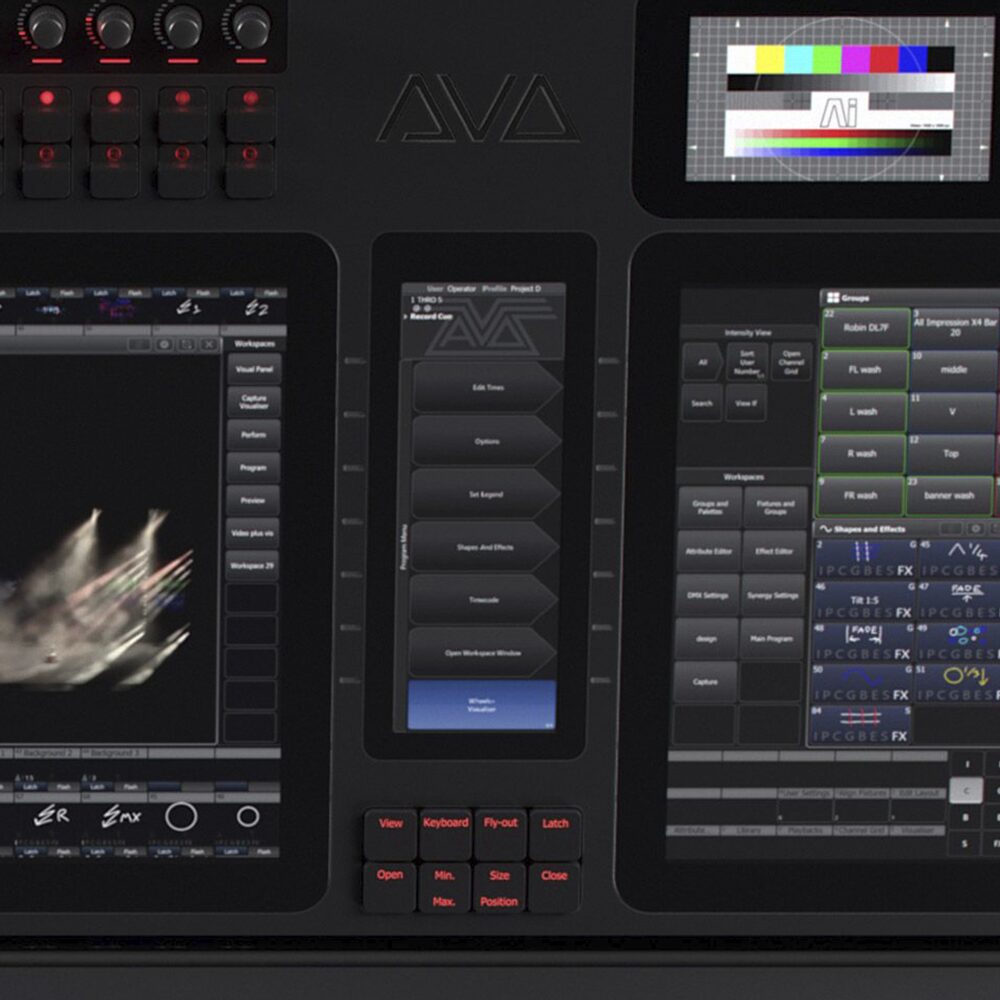

Avolites - Diamond Console D9-330 Front face of console showing desk overviewAvolites - Diamond Console D9-330 Front face of console showing desk overview

Avolites – Diamond Console D9-330

Avolites

Designed from the ground up for seamlessly integrated control of all visual elements, with the finest materials and meticulous attention to detail, the Diamond 9–330 is the flagship visual canvas controller in our collection

SKU: 30-01-9203 Categories: , , ,

Description

Our flagship console, designed by visual designers for visual designers, the D9 is capable of powering your most demanding shows.

Features

  • 30 motorised touch -sensitive Penny & Giles
  • 3 x 15.6” touchscreens with adjustable brightness
  • 70 optical rotary touch sensitive playback encoders
  • Generative, animation-based pixel mapping
  • Quicksketch labelling for ultimate personalisation
  • Powerful multi-user networking with any Titan console
  • Create huge effects in seconds with Key Frame Shapes
  • Feature-packed cue lists supporting macros, tracking, autoloads, timecode and more
  • Expand DMX channel capacity with Titan Net Processors
  • Synergy-ready. Add any Ai product to unlock seamless video integration

Video


D9 features – Playbacks

After the phenomenal reaction to the Diamond 9 announcement, we’re taking you through the features of the console in detail, starting with Playbacks.

Additional information

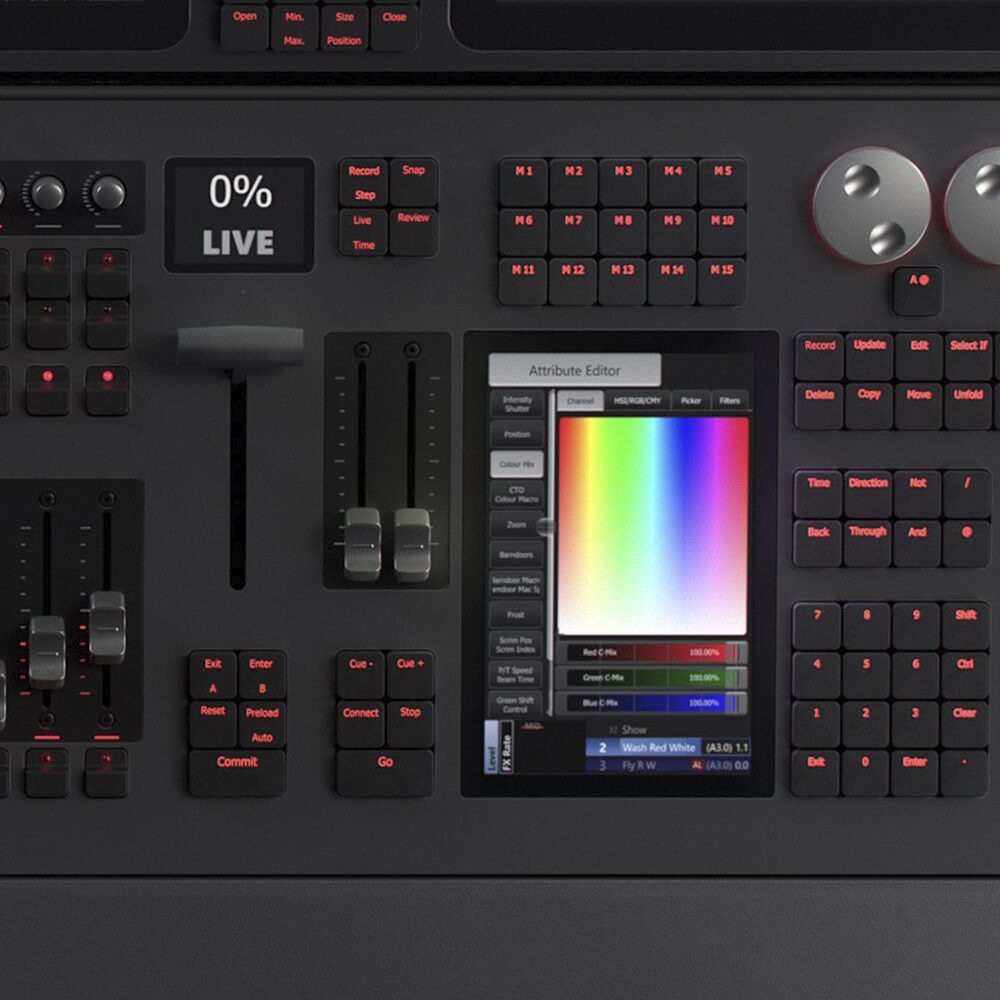

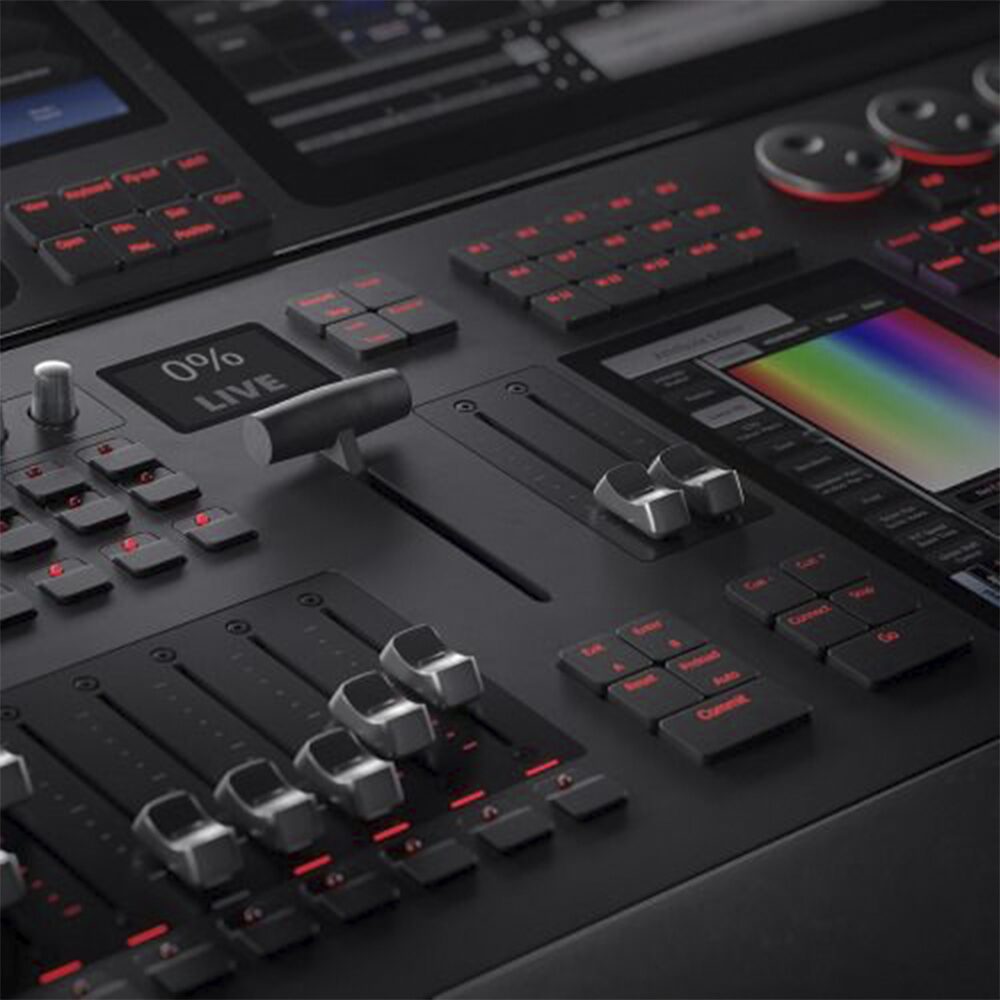

Control Surface

30 + 2 motorised touch-sensitive Penny & Giles faders – designer fader cap
11-segment RGB LED level indicator alongside each fader
Halo RGB indicator for each playback
70 optical rotary touch sensitive playback encoders with push function – designer knob
11-segment RGB LED level indicator alongside each encoder
RGB halo indicator for each encoder
180 C&K playback function buttons with positive haptics for timing – designer button cap
3 x 15.6” 1000nits 1920*1080 capacitive touchscreens with adjustable brightness
3 x 4.3” 1000nits 800×480 preview touchscreens for media or workspaces
Softkey menu touchscreen
Independent paging for each playback section
Programming buttons all RGB backlit, short travel Cherry® MX Low Profile switches
5 custom RGB backlit optical attribute encoders
Dedicated level wheel, machined aluminium with colour LCD status screen
T-Bar with 5 control buttons and a colour LCD status screen
Dual, motorised, touch-sensitive, master cue list fader control with 9 buttons
7” dual-touch high-brightness 800*1280 programming screen
Full custom backlit QWERTY keyboard in drawer, keys identical to program panel
X, Y, Z, optical trackball
21 backlit Macro / Executor keys, all screen-labelled
Supports two additional HDMI 1920*1080 touchscreens
Construction

All screens flush-mounted
Infinitely adjustable hydraulic screen panel articulation – 18 to 68 degrees from horizontal
Software

Software Plat Form: Avolites Titan
DMX Channels Per Device: 16,384
DMX Channels Per System: 32,768
Max Fixtures: Unlimited
Key Frame Effect Engine: Custom effects with any number of keyframes
Pixel Mapping: Video via synergy, pixel animation from titan
Playback controls: User defined using multiple faders, encoders and buttons.
External control: Web API, SMPTE, MIDI, DMX, S-CAN, GPIO
Titan Net: Multi-user & DMX expansion
Output Formats: Arnet, S-CAN, DMX512
Base OS: Microsoft windows 10 enterprise LTSC 64 Bit
Hardware

Unit Diementions (W x D x H):
1380 X 640 X 455mm (Screens Up), 1380 x 705 X 240mm (Screens Down)
54.3” x 25.2” x 17.92 (Screens up), 54.3” x 27.8” x 9.5” (Screen Down)

Weight: 68 KG / 150 LBS
Power Consumption: Max 400W
Voltage: 110 – 240V AC, 50-60Hz
Operating Environment: Operating Temp 0-40C / 32-104F Max Humidity 95% Relative N0n-condensing

Heat Output: Max 1365 BTU/HR
Internal Ups: Up to 5 sperating 4-minute Periods, fully software integrated

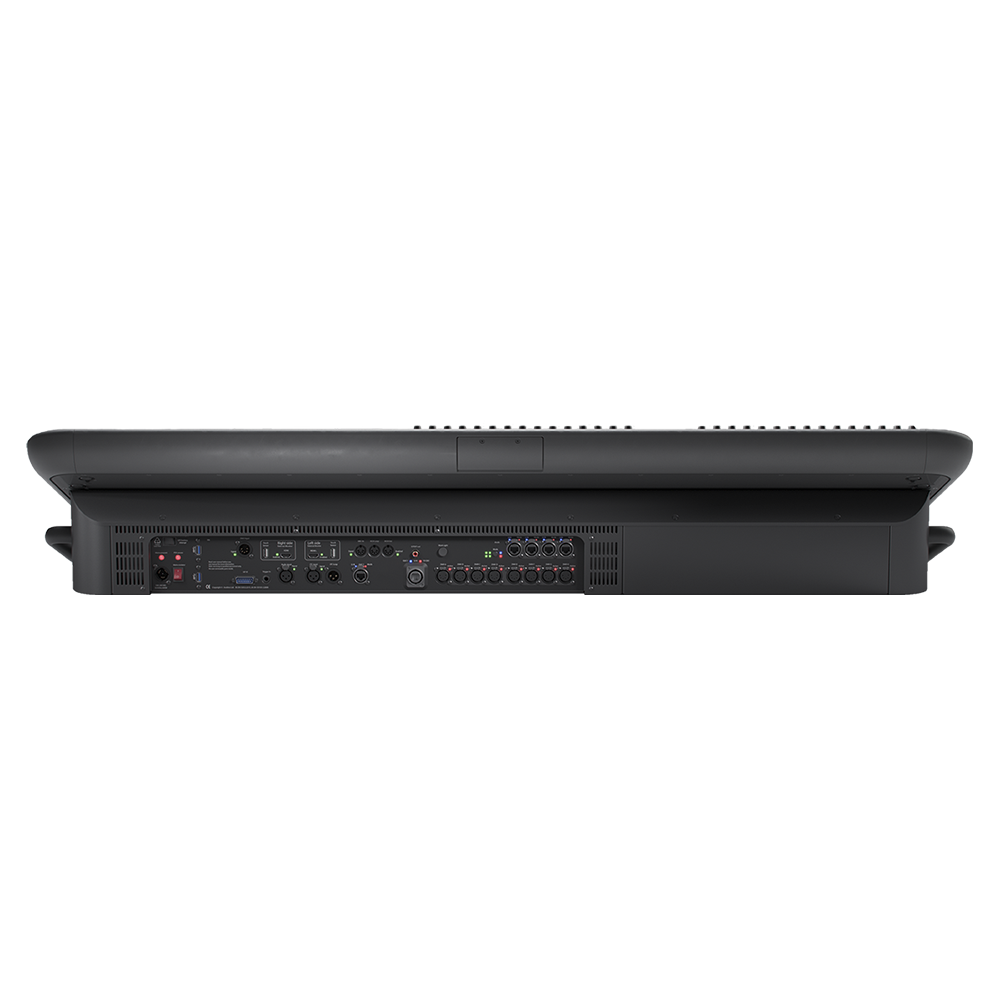

Connectivity

DMX 512: 8 x Neutrik 5-pin XLR, Optically and galvanically Isolated with halo assignment Indicators
Network:
4 x 1gbe Neutrik Ethercon, Internally Switched & Managed
1 x Wuad Opticalcon 1gbe LC Connection
1 x 1gbe Ethercon, Network 2
Data/Peripherals:
1 x USB 3.1 Under Armrest
1 x USB 3.1 On front Pannel
2 x USB 3.1 Back Panel
2 x USB 2.0 Assigned for external touchscreens

Eternal Display: 2 x HDMI up to 1920*1080
SMPTE: 1 x 3-pin Neutrik XLR Transformer Isolated input with signal indicator plus 3-Pin XLR Loop out.
Trigger Inputs:
GPIO 4 In/4 Out, Isolated, and Dry Contacts
¼” jack for foot switch.
DMX512 Dedicated Input with Indicator

MIDI:
In, thru, out on 5-pin din with signal and enabled indicators USB MIDI supported

Audio Out: Digital S/PDIF RCA
Mains Power: Neutrik True1®
