Avolites – Diamond Console D9-215

Avolites

The same intuitive, integrated control but with a smaller footprint. The Diamond 9–215 is a more compact version of the flagship visual canvas controller in our collection.

SKU: 30-01-9202 Categories: , , ,

Description

Avolite’s flagship console in a more compact 2 screen version

Features

  • 15 + 2 motorised touch-sensitive Penny & Giles faders – designer fader cap
  • 40 Optical rotary assignable encoders with push function
  • 2 x 15.6” 1000nits 1920*1080 capacitive touchscreens with adjustable brightness
  • 3 x 4.3” 1000nits 800×480 preview touchscreens for media or workspaces
  • Generative, animation-based pixel mapping
  • Quicksketch labelling for ultimate personalisation
  • Powerful multi-user networking with any Titan console
  • Create huge effects in seconds with Key Frame Shapes
  • Feature-packed cue lists supporting macros, tracking, autoloads, timecode and more
  • Expand DMX channel capacity with Titan Net Processors
  • Synergy-ready. Add any Ai product to unlock seamless video integration

Additional information

Control Surface

15 + 2 motorised touch-sensitive Penny & Giles faders – designer fader cap
11-segment RGB LED level indicator alongside each fader
Halo RGB indicatorfor each playback
40 optical rotary touch sensitive playback encoders with push function – designer knob
11-segment RGB LED level indicator alongside each encoder
RGB halo indicator for each encoder
90 C&K playback function buttons with positive haptics for timing – designer button cap
2 x 15.6” 1000nits 1920*1080 capacitive touchscreens with adjustable brightness
3 x 4.3” 1000nits 800×480 preview touchscreens for media or workspaces
Softkey menu touchscreen
Independent paging for each playback section
Programming buttons all RGB backlit, short travel Cherry® MX Low Profile
Switches
5 custom RGB backlit optical attribute encoders
Dedicated level wheel, machined aluminium with colour LCD status screen
T-Bar with 5 control buttons and a colour LCD status screen
Dual, motorised, touch-sensitive, master cue list fader control with 9 buttons
7” dual-touch high-brightness 800*1280 programming screen
Full custom backlit QWERTY keyboard in drawer, keys identical to program panel
X, Y, Z, optical trackball
21 backlit Macro / Executor keys, all screen-labelled
Supports two additional HDMI 1920*1080 touchscreens
Construction

Panels machined from single pieces of solid aluminium
Comfortable armrest
Exclusively manufactured button caps, fader caps, encoder knobs, encoder wheels and level wheel
All screens flush-mounted
Infinitely adjustable hydraulic screen panel articulation – 18 to 68 degrees from horizontal
Software

Software Platform: Avolites Titan
DMX Channels Per Device: 16, 384
DMX Channels Per System: 32,768
Max Fixtures: Unlimited
Keyframe Effects Engine: Custom Effects with any numbers of Key frames
Pixel Mapping: Video Via synergy, Pixel animations from titan
Playback control: User Defined using multiple faders, encoders and buttons
Eternal Control: Web API, SMPTE, MIDI, DMX, S-CAN, GPIO
Titan Net: Multi-user & DMX Expansion
Output Formats: Artnet, S-CAN, DMX512
Base OS: Microsoft window 10 Enterprise LTSC 64 Bit
Hardware

Unit Dimensions (W x D x H)
995 x 640 x 445mm (screen up)
995 x 750 x 240mm (Screens down)
Weight: 54 KG / 120LBS
Power Consumption: Max 380W
Voltage: 110 – 240V AC, 50-60Hz
Operating Environment: Operating temp 0-40C / 32-104F Max Humidity 95% Relative non-condensing
Heat Output: Max 1297 BTU/HR
Internal Ups: Up to 5 separate 4-minute periods, fully software intergreated, with bypass switch.
Connectivity

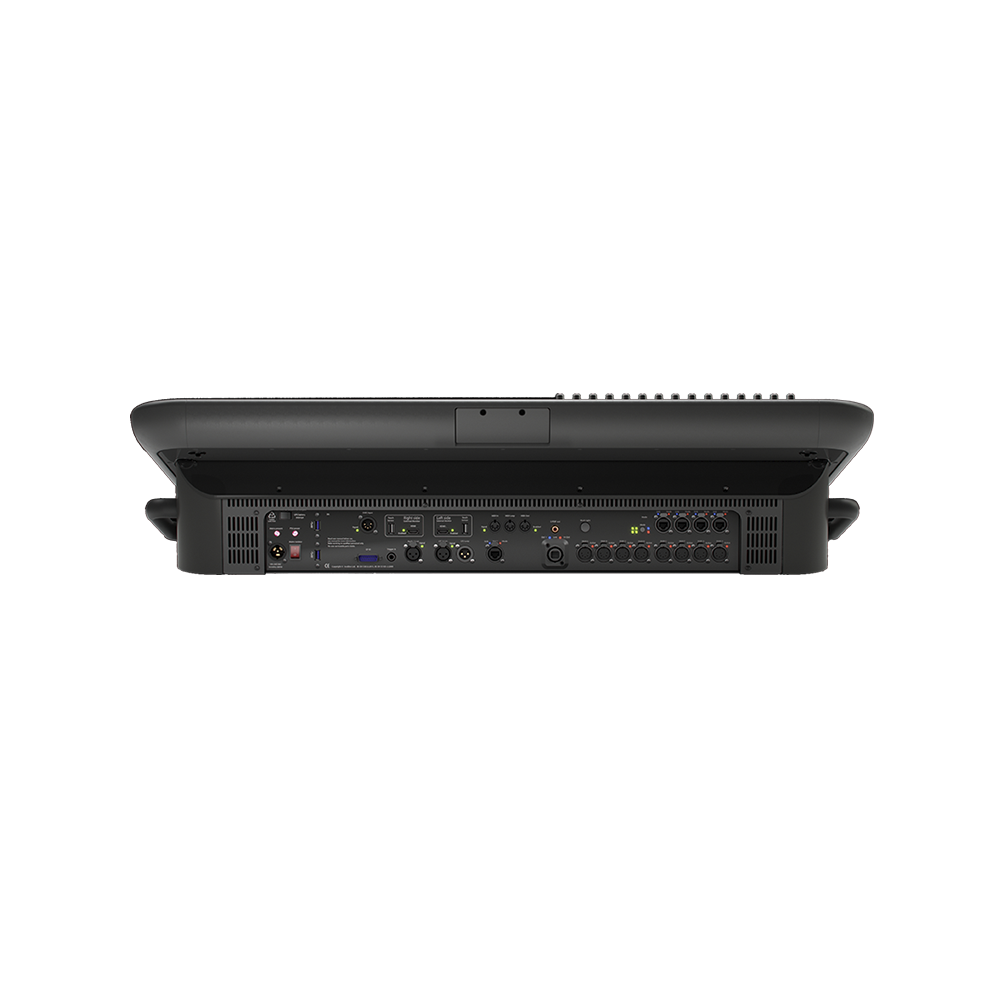

DMX 512: 8 x Neutrik 5-pin XLR, optically and galvanically isolated with halo assignment indicators
Network: 4 x 1 gbe Neutrik ethercon, internally switched & managed
1 x Quad opticalcon 1gbe LC connection
1 x 1gb ethercon, network 2
Data / Peripherals:
1 x USB 3.1 Under Armrest
1 x USB 3.1 On front panel
2 x USB 3.1 Back Panel
2 x USB 2.0 Assigned for external touchscreen

External Display: 2 x HDMI up to 1920*1080

SMPTE: 1 x 3-pin Neutrik XLR Transformer isolated input with signal indicaor Plug 3-pin XLR Loop out.

Trigger Inputs:
GPIO 4 in/4 out, Isolated, and dry contacts ¼” Jack For foot switch.
DMX512 Dedicated input with indicator
Audio input 3-pin XLR with indicator

MIDI: In, thru, out on 5-Pin Din with signal and enabled indicators USB MIDI supported

Audio Out: Digital S/PDIF RCA
Mains Power: Neutrik True1 ®
