Avolites - D7-330 Front FaceAvolites - D7-330 Front Face

Avolites – D7-330

Avolites

The latest in the Diamond collection of consoles

SKU: 30-01-7203 Categories: , , ,

Description

Avolites’ D7 lighting control surface is the latest in the line of Dimond consoles. In its more portable form factor the high-performance lighting desk can be packed into a standard Peli Air case and checked in as hold luggage. Its more modest size doesn’t skip on features with premium hardware in a layout you’ll be familiar with. Its sleek design houses 30 motorised playback faders, 30 ultra-high resolution touch sensitive playback encoders with push function, 3 x 14” capacitive touchscreens with adjustable brightness, Dual, motorised, touch-sensitive, master cue-list and sequence faders with 9 control buttons.

Features

  • 30 motorised playback faders, 30 ultra-high resolution touch sensitive playback encoders with push function
  • 3 x 14” capacitive touchscreens with adjustable brightness
  • Dual, motorised, touch-sensitive, master cue-list and sequence faders with 9 control buttons
  • Fits into a custom Peli-Air Case 1745
  • Generative, animation-based pixel mapping
  • Quicksketch labelling for ultimate personalisation
  • Powerful multi-user networking with any Titan console
  • Create huge effects in seconds with Key Frame Shapes
  • Feature-packed cue lists supporting macros, tracking, autoloads, timecode and more
  • Expand DMX channel capacity with Titan Net Processors
  • Synergy-ready. Add any Ai product to unlock seamless video integration

Video

Diamond 7 lighting console

The ultimate travel and performance console, the new Diamond 7 (D7) has been designed for lighting designers, by lighting designers. Offering maximum control and programming power for minimal weight, at under 32kg the D7-215 can be packed in a standard Peli Air case and checked in as hold luggage to fly anywhere with you.

Additional information

Control Surface

30 Motorised touch-sensitive faders, with designer fader cap
Dual, motorised, touch-sensitive, master cue list fader with 9 control buttons
Single RGB LED Halo indicator alongside each fader
Halo RGB indicator for each playback
30 ultra-high resolution touch sensitive playback encoders with push function
RGB halo indicator for each encoder
120 C&K playback function buttons with positive haptics for timing, designer button cap
3 x 14” 850 nits 1920 x 1200 capacitive touch main screens with adjustable brightness
1 x 4.3” 850 nits 800 x 480 capacitive touch macro and workspace screen with adjustable brightness
LED desk light above LCD screen
10 backlit Macro / Executor key, plus
10 soft Macro buttons with legend on
Macro screen
Independent paging for each playback section
Programming buttons all RGB backlit, short travel Cherry® MX Low Profile switches
5 custom RGB backlit attribute encoders
Dedicated level wheel and onscreen level indication

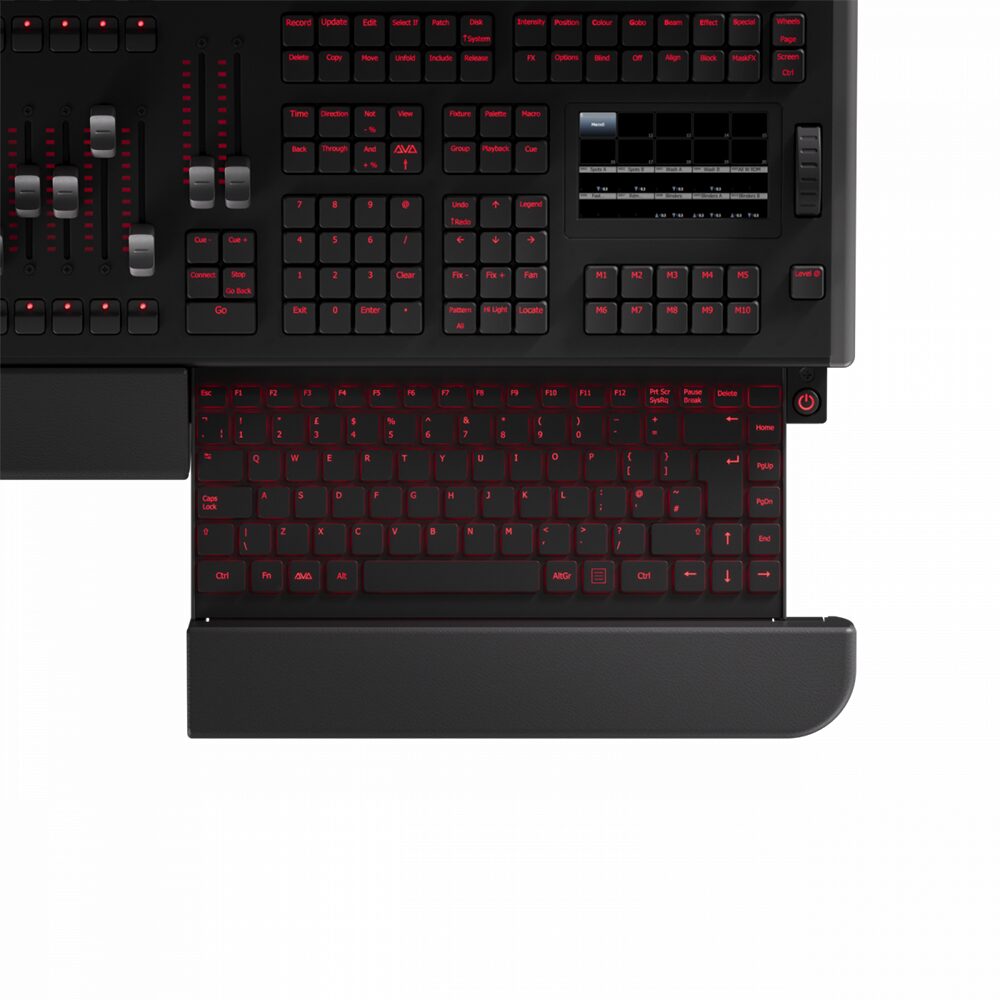

Full custom backlit QWERTY keyboard in drawer
Supports one additional external DisplayPort 1920*1080 touchscreen
Construction

All aluminium construction to reduce weight
Clam shell LCD panel design to reduce transport size, with positive locking mechanism, adjustable screen panel articulation in 6 degrees steps from – 90 to 155 degrees from vertical
Comfortable armrest
Exclusively manufactured button caps, fader caps, encoder knobs, encoder wheels and level wheel
All screens flush-mounted
Can be transported in a custom Peli Air 1754 case
Software

Software Platform: Avolites Titan
DMX Slots Per Device: 16,384
DMX Slots Per System: 32,768
Max Fixtures: 32,000
Keyframe Effect Engine: Custom Effects with Any Number Of Keyframes
Pixel Mapping: Video Via Synergy, Pixel Animations From Titan
Playback Control: User Defined Using Multiple Faders , Encoders And Buttons
External Control: Web API, SMPTE , MIDI, DMX, S-ACN, GPIO
Titan Net: Multi-User & DMX Expansion
Output Formats: Artnet, S-ACN, DMX512
Base Os: Microsoft Window S 10 Enterprise Ltsc 64 Bit
Visualizer: Built In 3d Capture ™ Visualizer
Hardware

Processing: Custom Processing Hardware And Cooling To Get The Best Processing Performance And Cooling With The Addition Of Features Including Industry Standard Xlr Connectors For Networking And Protected Outlets
Unit Dimensions (W X D X H):
1070 X 4 4 0 X 24 0 Mm (Screens Up)
1070 X 4 4 0 X 16 0 Mm (Screens Down)
Weight: Under 32kg / 70 Lbs
Power Consumption: Max 300w
Voltage: 110 – 240v Ac, 50 – 60hz
Operation Environment:
Operating Temp. 0 – 40c / 32-10 4 F Max Humidity 9 5%
Relative Non- Condensing
Heat Output: Max 1024 Btu/Hr
Internal Ups: Up To 5 Separate 4 -Minute Periods, Fully Software Integrated

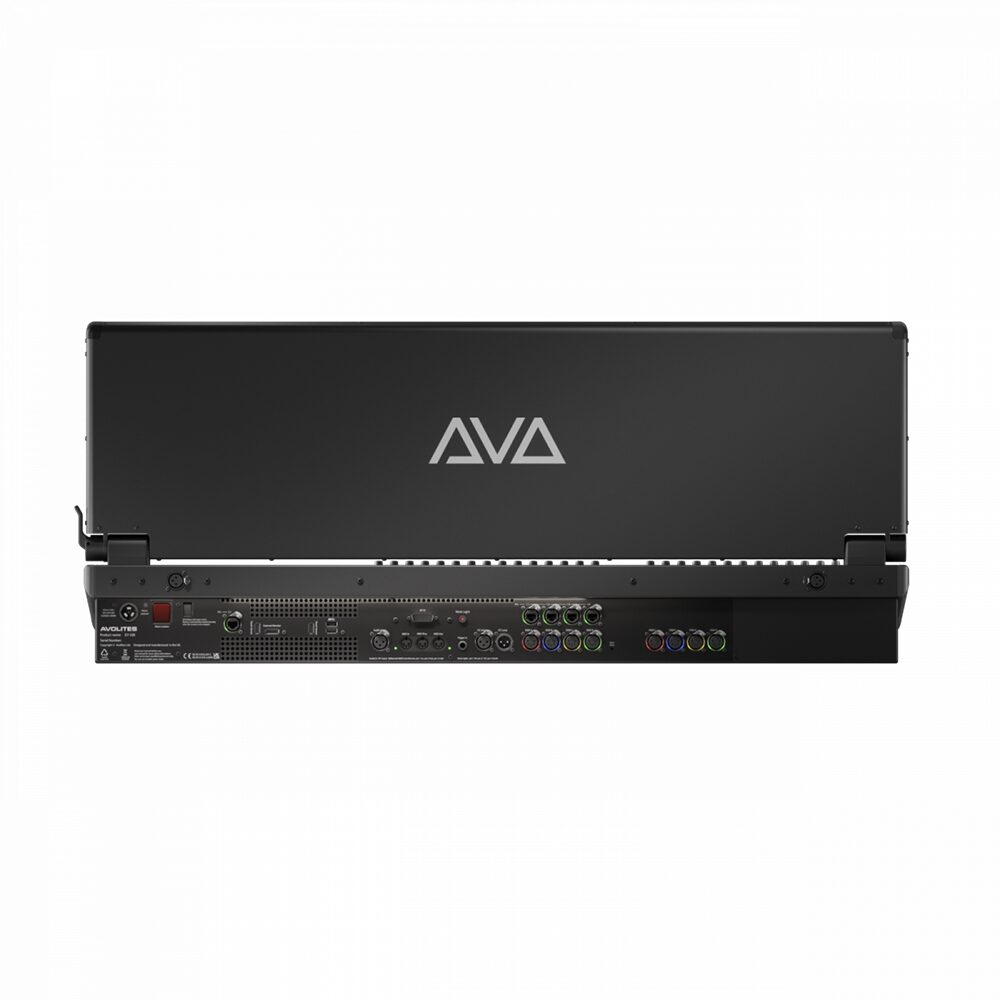

Connectivity

DMX512:
8 X Neutrik 5-Pin XLR, Optically And Galvanically Isolated With Halo Assignment Indicators
Network:
4 X Neutrik XLR On The Primary Port, Internally Switched & Managed
1 X Neutrik XLR Secondary Network Port

Data/Peripherals:
1 X USB 3.0 Right Hand Side Handle
2 X USB 3.0 Back Panel
2 X USB 2.0 Assigned For External Touch Screens

External Display:
1 X Display Port Up To 1920 * 1080

SMPTE:
1 X 3-Pin Ltc Timecode In And Loop Out XLR With Transformer Isolation

Trigger Inputs:
GPIO 4 In/4 Out, Isolated, And Dry Contacts On 15 Pin D Sub Connector
¼” Jack For Foot Switch
Audio Input For 7 X Band Triggers , Via 3-P In XLR With Transform Isolation

MIDI: In, Thru, Out On 5-Pin Din With Signal And Enabled Indicators USB Midi Supported

Rear Work Light:
White Led Strip With Red Led Button To A Id Quick
Location
2 X 3 Pin XLR Desk Light Sockets
Mains Power:
Neutrik True1®

Downloads

Data Sheet Download
