Avolites - D7-215 the ultimate travel and performance console Front FaceAvolites - D7-215 the ultimate travel and performance console Front Face

Avolites – D7-215 the ultimate travel and performance console

Avolites

The latest in the Diamond collection of consoles

SKU: 30-01-7202 Categories: , , ,

Description

Avolites’ D7 lighting control surface is the latest in the line of Dimond consoles. In its more portable form factor the high-performance lighting desk can be packed into a standard Peli Air case and checked in as hold luggage. Its more modest size doesn’t skip on features with premium hardware in a layout you’ll be familiar with. Its sleek design houses 15 motor playback faders, 15 encoder playbacks, 2 x 14” capacitive touchscreens with adjustable brightness, Dual, motorised, touch-sensitive, master cue-list and sequence faders with 9 control buttons.

Features

  • 15 motor playback faders, 15 encoder playbacks
  • 2 x 14” capacitive touchscreens with adjustable brightness
  • Dual, motorised, touch-sensitive, master cue-list and sequence faders with 9 control buttons
  • Fits into a custom Peli-Air Case 1615
  • Generative, animation-based pixel mapping
  • Quicksketch labelling for ultimate personalisation
  • Powerful multi-user networking with any Titan console
  • Create huge effects in seconds with Key Frame Shapes
  • Feature-packed cue lists supporting macros, tracking, autoloads, timecode and more
  • Expand DMX channel capacity with Titan Net Processors
  • Synergy-ready. Add any Ai product to unlock seamless video integration

Video

Diamond 7 lighting console

The ultimate travel and performance console, the new Diamond 7 (D7) has been designed for lighting designers, by lighting designers. Offering maximum control and programming power for minimal weight, at under 32kg the D7-215 can be packed in a standard Peli Air case and checked in as hold luggage to fly anywhere with you.

Additional information

Control Surface

15 motorised touch-sensitive faders, with designer fader cap
Dual, motorised, touch-sensitive, master cue-list and sequence faders with 9 control buttons
Single RGB LED Halo indicator alongside each fader
15 Ultra high resolution touch sensitive playback encoders with push function
Halo RGB indicator for each playback
60 C&K playback function buttons with positive haptics for timing designer key cap
Paging for playback section
2 x 14” 850 nits 1920 x 1200 capacitive touch main screens with adjustable brightness
1 x 4.3” 850 nits 800×480 capacitive touch macro and workspace screen with adjustable brightness
10 backlit Macro / Executor key & 10 soft Macro buttons with legend on Macro screen
Programming buttons all RGB backlit, short travel Cherry® MX Low Profile switches

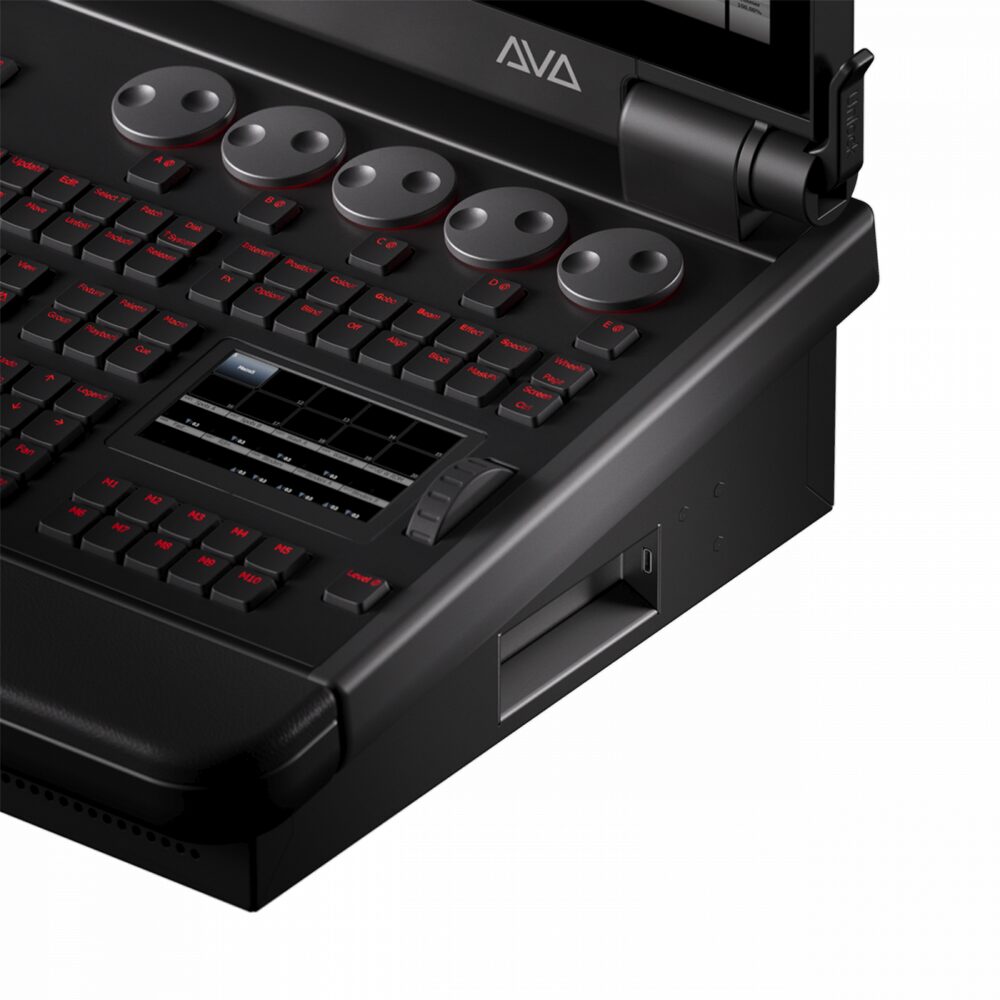

5 custom RGB backlit attribute encoders
Dedicated level wheel and onscreen level indication

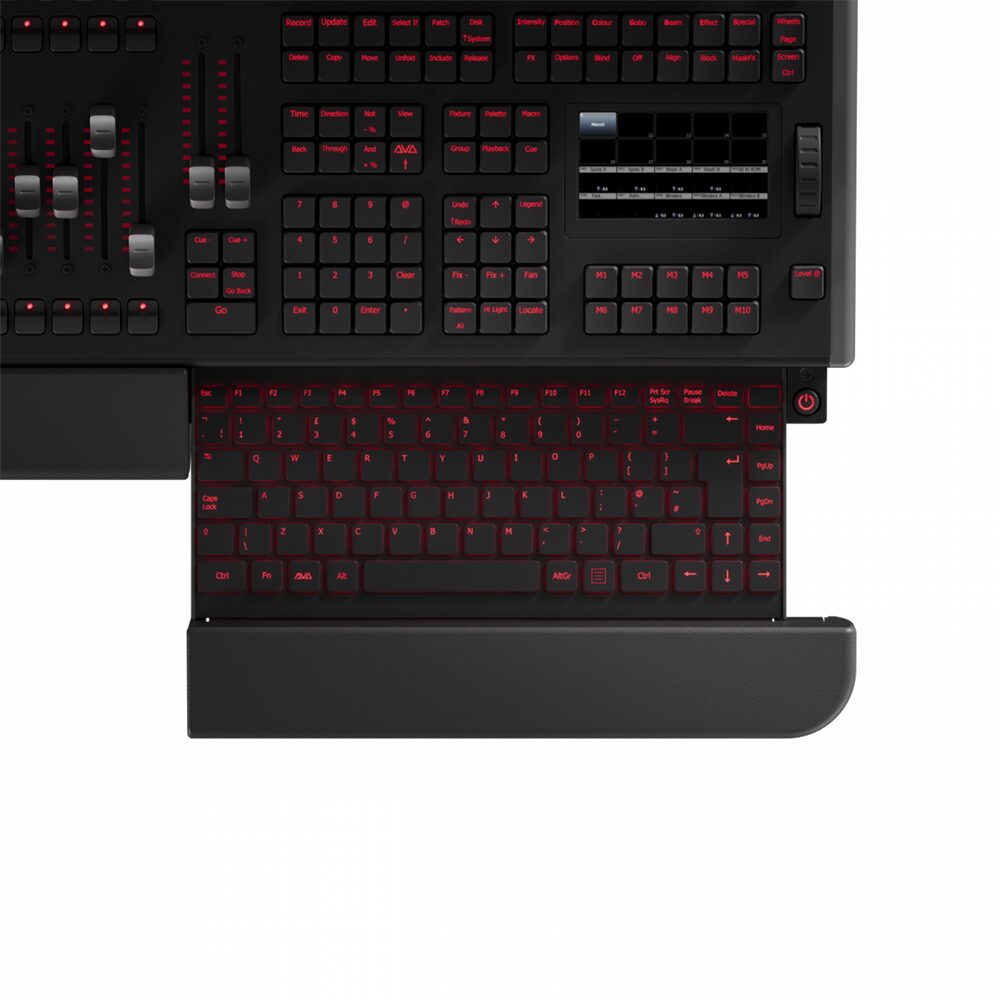

Full custom backlit QWERTY keyboard in drawer
Supports two additional external DisplayPort 1920*1080 touchscreens
Construction

All aluminium construction to reduce weight
Clam shell LCD panel design to reduce transport size, with positive locking mechanism, adjustable screen panel articulation in 6 degrees steps from – 90 to 155 degrees from vertical
Comfortable armrest
Exclusively manufactured button caps, fader caps, encoder knobs, encoder wheels and level wheel
All screens flush-mounted
Can be transported in a custom Peli Air 1615 case, allowing for most airlines checked in luggage use
Software

Software Platform: Avolites Titan
Dmx Channels Per Device: 16,384
Dmx Channels Per System: 32,768
Max Fixtures: 32,000
Keyframe Effect Engine: Custom Effects With Any Number Of Keyframes
Pixel Mapping: Video Via Synergy, Pixel Animations From Titan
Playback Control: User Defined Using Multiple Faders , Encoders And Buttons
External Control: Web API, SMPTE , MIDI, DMX ,S-ACN, GPIO
Titan Net: Multi-User & DMX Expansion
Output Formats: ARTNET, S-ACN, DMX512
Hardware

Processing:
custom processing hardware and cooling to get the best processing performance and cooling with the addition of features including industry standard XLR connectors for networking and protected outlets
Unit Dimensions (W X D X H):
680 x 450 x 240mm (screens up)
680 x 450 x 150mm (screens down)
Weight: Under 32kg / 70 lbs
Connectivity

DMX 512:
4 x Neutrik 5 -pin XLR, optically and galvanically isolated with halo assignment indicators
Network:
4 x Neutrik Ethercon on the primary port, internally switched & managed
1 x Neutrik Ethercon secondary network port

Data/Peripherals:
1 x USB 3.0 type c right hand side handle
2 x USB 3.0 back panel
2 x USB 2.0 assigned for external touch screens

External Display:
2 x display port up to 19 2 0 * 10 8 0

SMPTE:
1 3-Pin LTC timecode in and loop out via 3 pin XLR with transformer isolation

Trigger Inputs:
GPIO 4 in/4 out, isolated, and dry contacts on 15 pin d sub connector
¼” jack for foot switch audio input for 7 x band triggers, via 3-pin XLR with transform isolation

Midi:
In, thru, out on 5-pin din with signal and enabled indicators USB midi supported

Rear Work Light:
White led strip with red led button to aid quick location 2 x 3 pin XLR desk light sockets

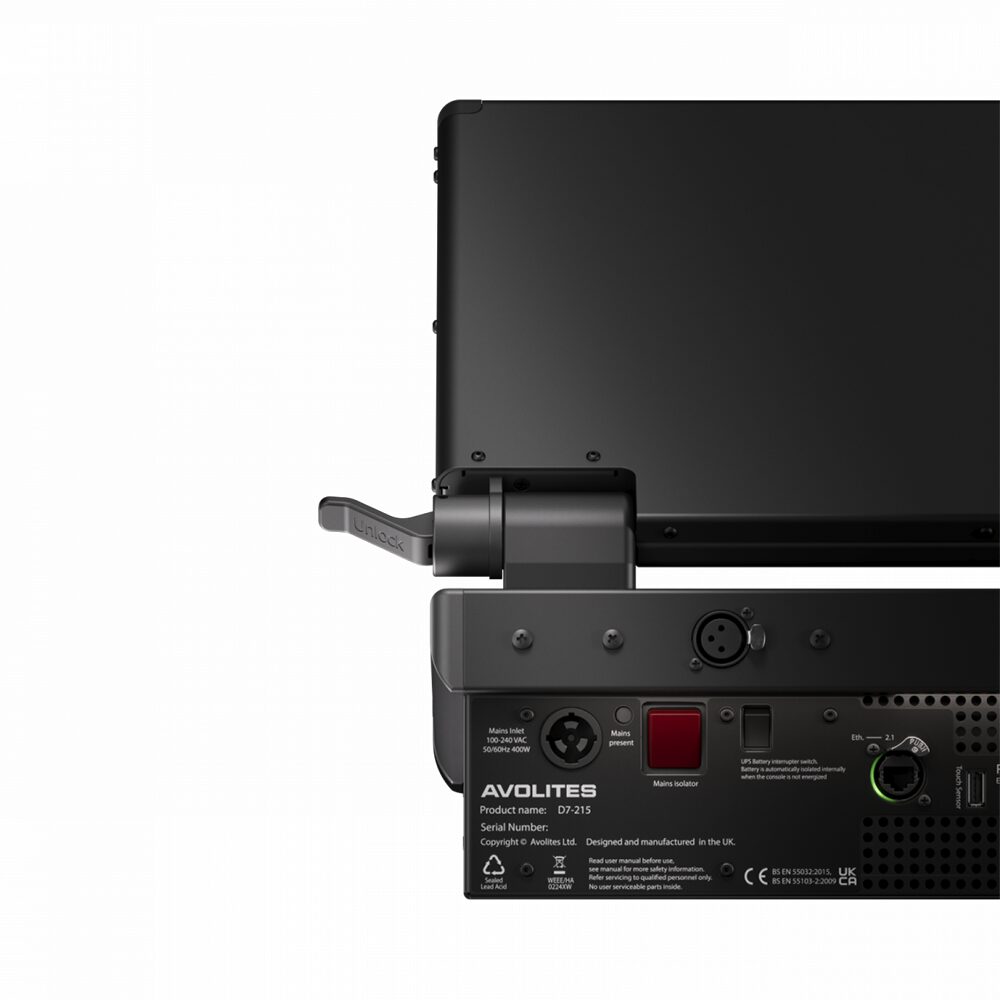

Mains Power: Neutrik true1®

Downloads

Data Sheet Download
