Avolites – D3 Touch

Avolites

The Avolites D3 Touch is a pre-configured touchscreen interface for Titan systems. Ideal for venues and installations, it provides easy access to playbacks, house light presets, and macros, making it simple and reliable even for non-technical operators

SKU: 30-02-3005 Categories: , , ,

Description

D3 Touch is a pre-configured, installation touchscreen interface for Titan. It’s designed for venues and installations where operators need simple, reliable access to key functions – from show playback to house light presets. Fully integrated with Titan, it’s plug-and-play, responsive, and easy to use, even for non-technical staff.

Features

  • Pre-configured touchscreen interface designed to control Titan systems
  • Compatible with a D3 Core or other Titan consoles
  • Provides touch access to playbacks and macros
  • 4x Zones, 8x Scenes per Zone (more can be added using Titan Macros)
  • 8x Titan Macros
  • Lock Screen
  • Unlock Code

Additional information

Control surface

Internal Screens: 1x 10", WXGA capacitive touchscreen
Software

Supports: All Titan consoles (excluding T1)
Zones: 4x Titan Playback Groups – User Numbers 1001 – 1004. (More can be added using Macros to change User Numbers).
Scenes Per Zone: 8x Titan Playbacks within each Playback Group. (More can be added using Macros to change contents of Playback Groups).
Macros: 8x Titan Macros – User Numbers 1001 – 1008
Lock Screens: Yes, via Titan
Unlock Code: Yes, via Titan (numeric only, requires Titan v19 or above)
Connectivity

Gigabit Ethernet: 1x RJ45
Physical

Weight: 0.9kg
Packaged Weight: TBC
Packaging: Cardboard
Dimensions (W X D X H): 246 x 27 x 164 mm
Packaged Dimensions: TBC

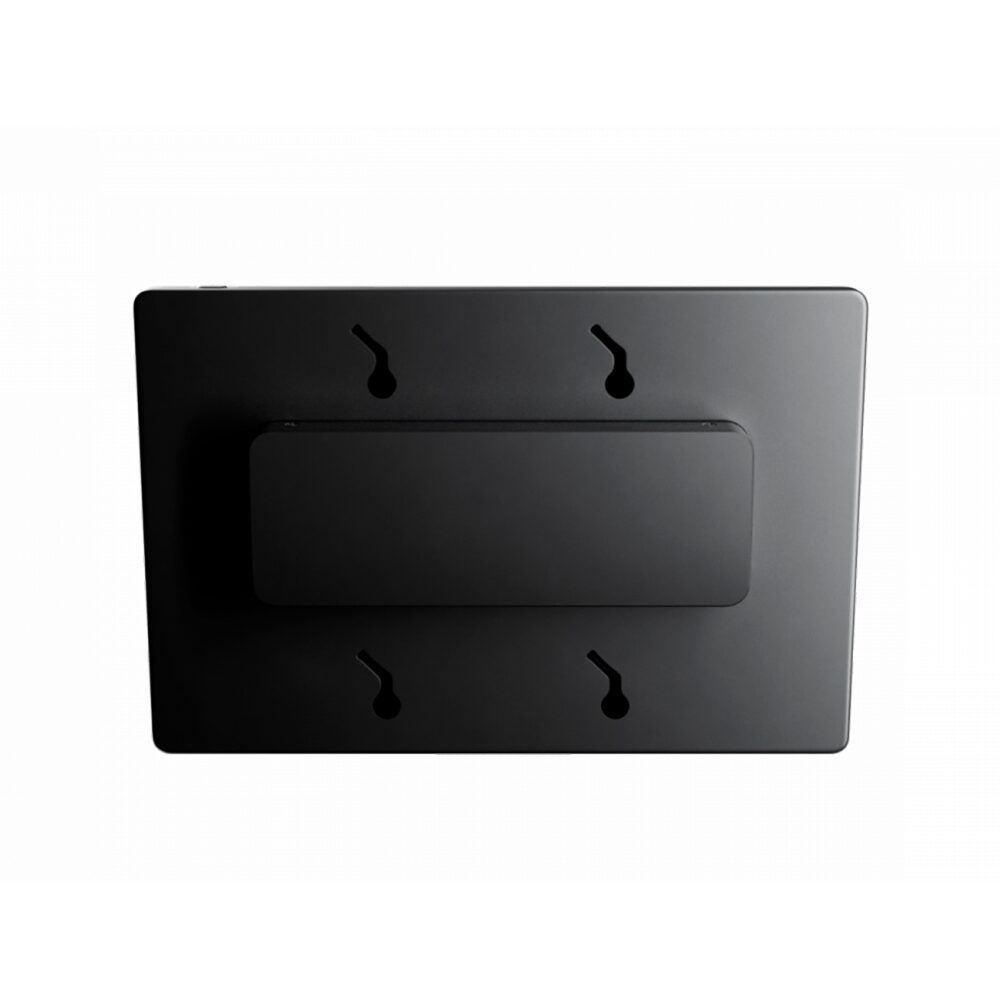

Mounting Depth:
20mm (no backbox)
47mm (with backbox)
Hardware

Operating Voltage (PSU Not Included): PoE or 24 VDC
Power Consumption: 6W max
Power Connector (POE): RJ45 (IEEE 802.3af-2003, negotiates Class 2)
Power Connector (PSU): 2-pin Pluggable screw terminal block (3.81mm pitch)
Soft Power Button: Yes (turns backlight on/off only)
Ip Rating: IP20 (indoor use only)
Operating Temperature: 0-40°C
Humidity: 90% non-condensing
Certification and Safety

Conformity: CE, WEEE, RoHS
