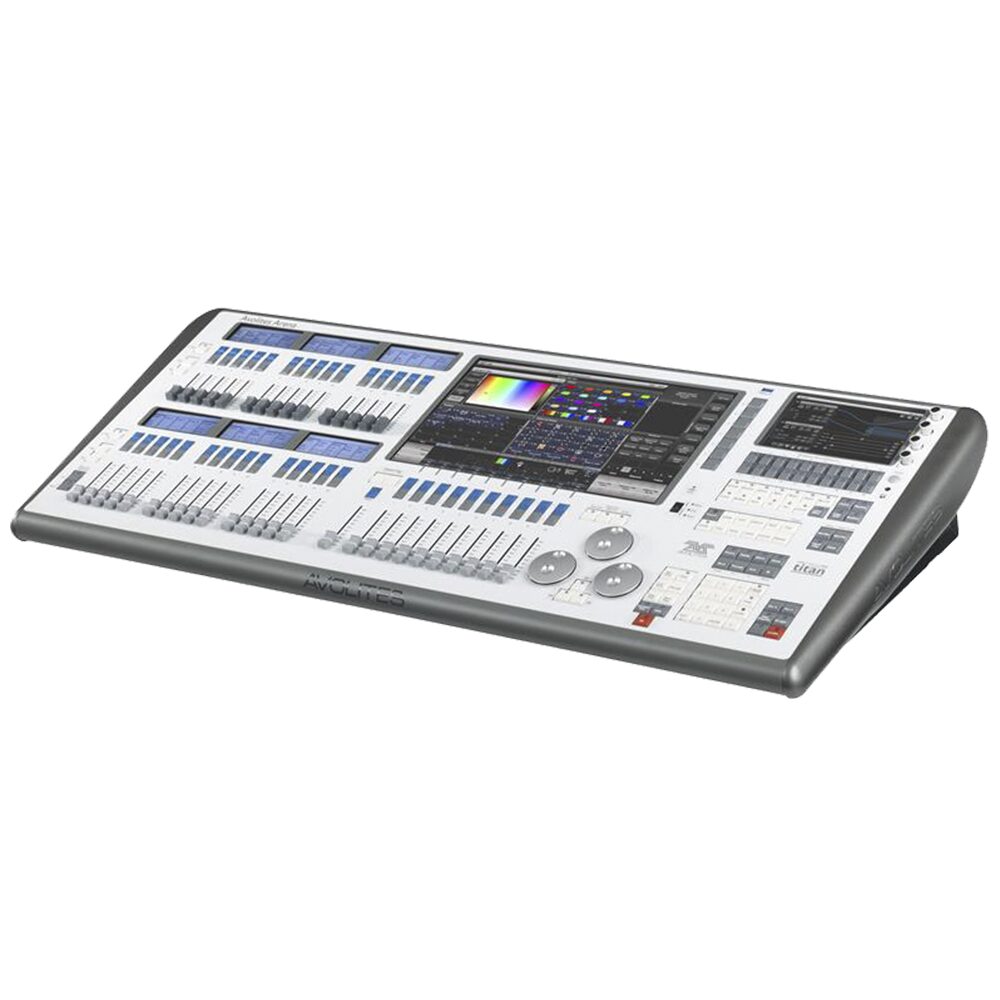

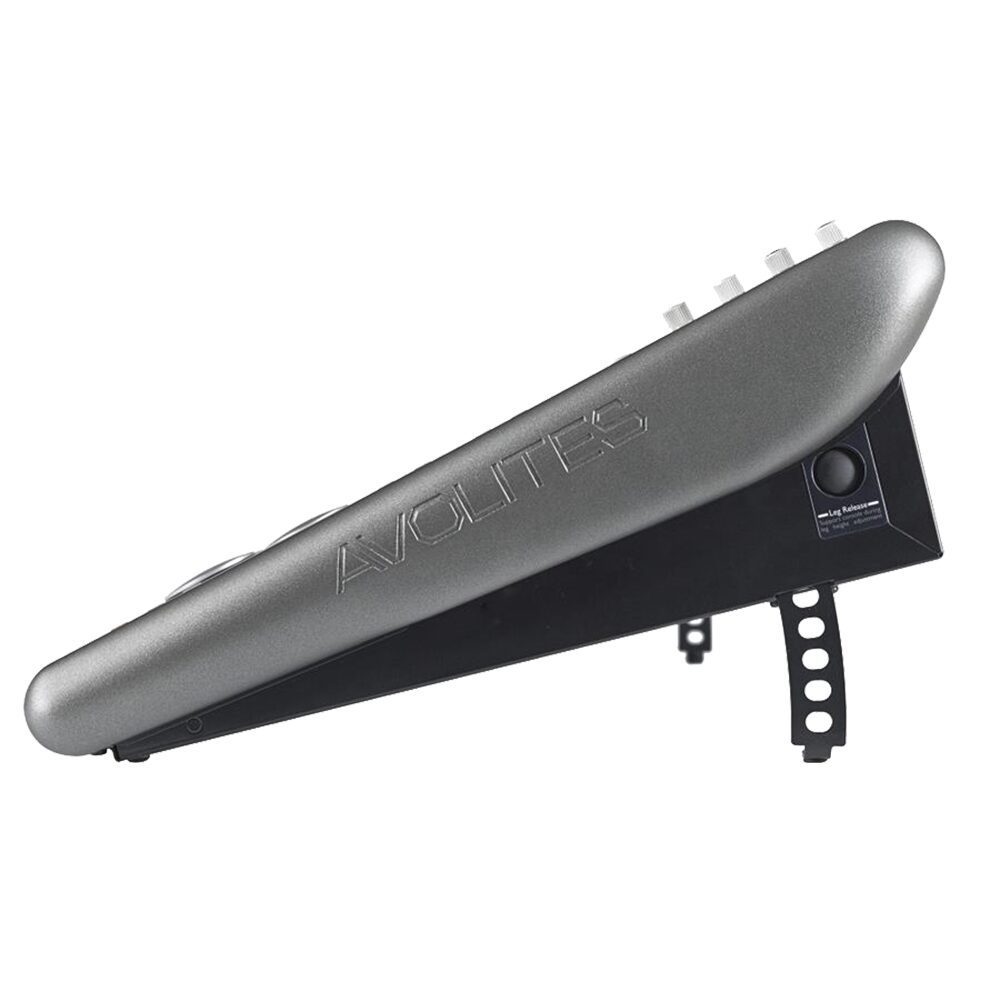

Avolites – Arena Console

Avolites

More live control than ever before…

SKU: 30-01-3040 Categories: , , ,
Clear

Description

Arena offers a bigger control surface, with future-proof connectivity for larger systems.

Feature Quick View

  • Combines Titan’s visual interface with a large control surface
  • Built-in network switch for ultimate connectivity
  • Super bright 15.6″ main display, plus a second smaller touch screen provides additional workspace
  • 6 LCD screens ensure all playbacks are electronically labelled
  • Generative, animation-based pixel mapping
  • Quicksketch labelling for ultimate personalisation
  • Powerful multi-user networking with any Titan console
  • Create huge effects in seconds with Key Frame Shapes
  • Feature-packed cue lists supporting macros, tracking, autoloads, timecode and more
  • Expand DMX channel capacity with Titan Net Processors
  • Synergy-ready. Add any Ai product to unlock seamless video integration

Video

An Interview with Nadeem A. Salam

Nadeem Salam, founder of Skesh Entertainment talks through starting his business, his use of Avolites consoles and the As It Is tour.

Additional information

Physical Specification

–

Unit Dimensions (w x d x h)

1072 x 428 x 150mm

Weight

23Kg

Flight Case Dimensions

1190 x 570 x 330

Weight in Flight Case

44Kg

Power Consumption

85W

Power Specification

110 – 240V AC, 50-60Hz

Heat Output

290 BTU/hrut

OperatingEnvironment

Ambient temp 0-40C / 32-104F. Max
humidity 95% relative non-condensing

Internal UPS

5 separate 5-minute periods,
fully software integrated

Software

–

Software Platform

Avolites Titan

DMX Channels per Device

8,192

Max DMX Channels per System

32,768

3D Visualisation

Capture engine built in

Max Fixtures

Unlimited

Keyframe Effect Engine

Custom effects with any number
of keyframes

Pixel Mapping

Animation based, video via Synergy

External Control

Web API, MIDI, DMX, S-ACN

Titan Net

Multi-user with any Titan console

Output Formats

ArtNet, S-ACN, or DMX512,
any combination

OS

Microsoft Windows 10 Enterprise

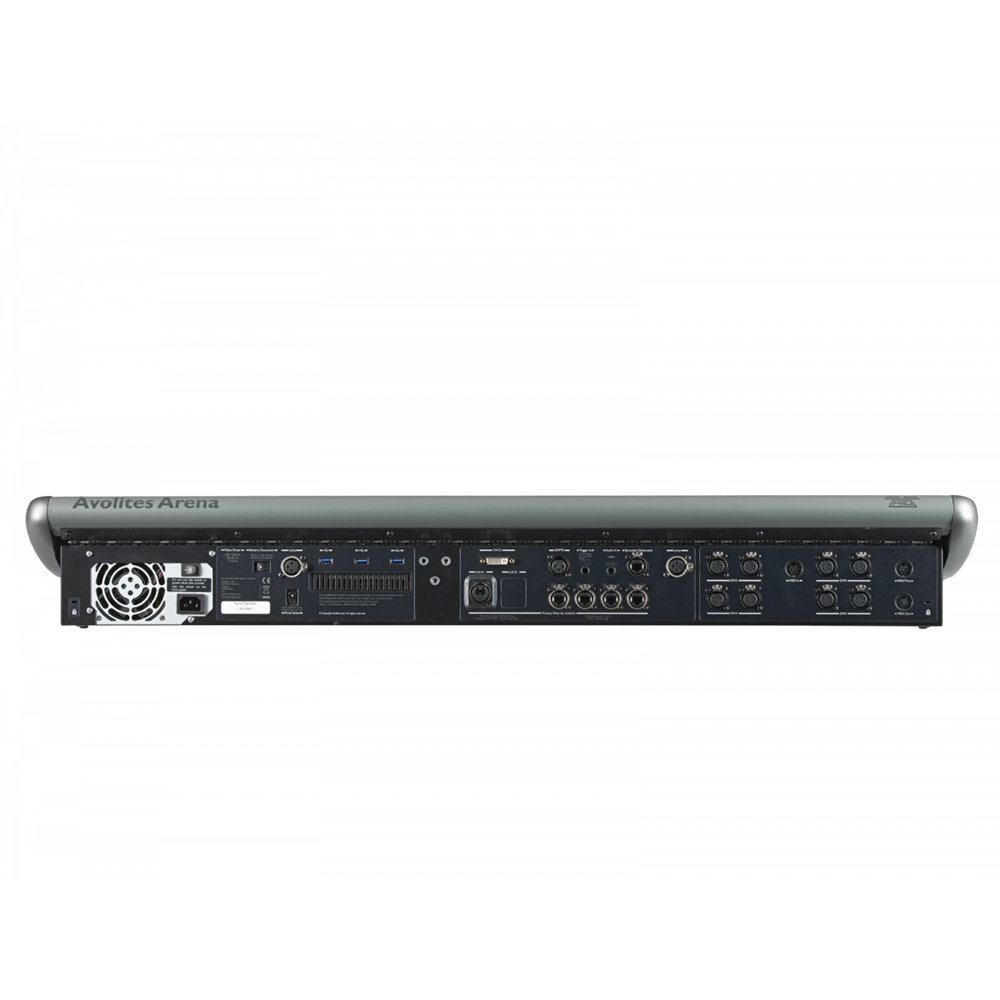

Connectivity

–

DMX 512

8 x Neutrik 5-pin XLR, optically isolated

Network

4 x 1Gb Ethercon, internally switched
with connection speed LEDs.
1 x OpticalCON Dual fibre 1Gb link,
internally switched.
1 x 1Gb Ethercon, separately
configured (network 2)

Mains Power

IEC

Data / Peripherals

4 x USB 3.0, 1 front, 3 rear

External Display

1 x DVI-D

MIDI

In & Out & Thru 5-pin DIN

SMPTE

3pin XLR

Switch Trigger

¼” jack

Audio In

¼” stereo jack

Downloads

Data Sheet Download
