Astera – Titan Tube

Astera

The ultimate film lighting tube for TV, cinema and photography.

SKU: ASTTITAN Categories: , , ,

Description

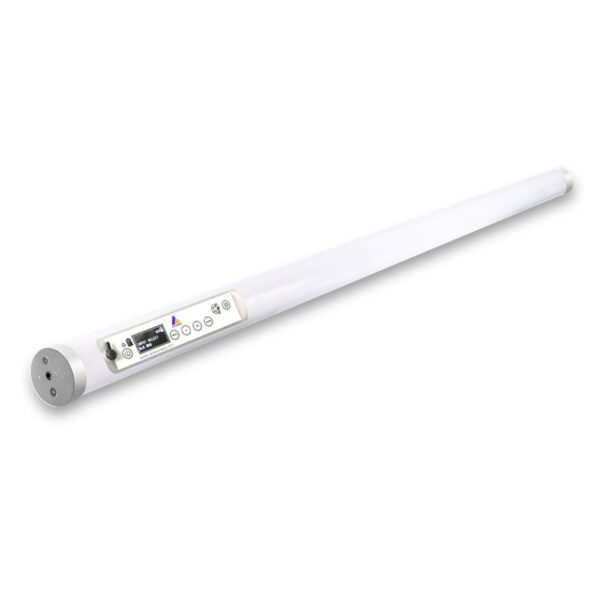

Titan Tube is the ultimate LED tube for filmmakers, studios, event technician and any creative person. It emits powerful, tunable whites with ultra-high color rendering as well as colored light which can be applied to individual pixels or the whole tube. The tube offers unlimited range of usage; indoor or outdoor, AC-powered or on battery, on the go with the AsteraApp, with wired or wireless DMX.

Features

Seamless Runtime

To ensure that your light’s batteries last throughout your entire production, you can select how many hours they have to last. This limits the light’s output to a level where you get the maximum brightness to achieve the selected runtime.

Effects

Quickly build programs out of colors and effects, trigger them or make them match a beat. Turn multiple programs and lights into scenes.

Talkback+

Detect all available lights, set them up, check their status, configure DMX addresses and DMX profiles.

Anti-Theft

When enabled, the integrated theft alarm gives visual and audible alarm if lights are being moved. In addition, the AsteraApp also shows the alarm.

Emergency Light

With this innovative feature, the lights can double as a battery-powered emergency light. When activated, the fixture can detect power loss and instantly switches to bright white light to illuminate the venue.

Video

Titan Tube Teaser Trailer

Titan Tube was specially designed for the Film, Broadcasting and Cinema industries. Optimized for an ultra-high TLCI, a very high CRI and peak brightness, colors as well as Hue, Saturation and Intensity can be set directly on the tube. In addition, the Titan Tube now accepts wired DMX via a special power/data combination cable.

Additional information

LED Engine

Titan LED Engine

Colors

RGBMintAmber

Total LED Power

72 W

LED Power draw

48 W

Luminous Flux 3200K

2535 lm

Luminous Flux 4000K

2900 lm

Light Output 3200 K @ 1m

708 lx

Light Output 4000 K @ 1m

785 lx

CRI(Ra)/TLCI 3200-6500K*

≥96

Beam Angle

135° x 115°

Field Angle

175° x 160°

Strobe

0-25 Hz

Pixel

16

Battery Runtime

Up to 20 hours

Battery Runtime Max Brightness

1h 45min

Battery Lifetime

70 % after 300 cycles

Charging Time (nominal)

3 hours

DC Input

24 VDC – 2 A

DC Connector

5.5 mm x 2.1 mm

AC Input

No

AC Connector

No

Wired DMX

Yes

CRMX Receiver

Built-in

BluetoothBridge BTB

Yes

Wireless Protocols

CRMX, UHF, Bluetooth, WiFi

Wireless Range

CRMX/UHF up to 300 m / 330 yds Bluetooth up to 3 m / 3.3 yds

Infrared Control

Yes

ControlSync

No

TouchSlider

No

Housing Material

Polycarbonate, metal end caps

IP Rating

IP65 (only with FP1-SP)

Ambient Operating Temperature

0 – 40 °C / 32 – 104 °F

Weight

1.35 kg / 3 lbs

Dimensions

Ø43 mm x 1035 mm/ Ø1.7” x H40.7”

Mounting Options

2x M5 thread, 2x Holder (with 2x M5 and 1x 1/4"-20UNC thread), 1x TubeStand
