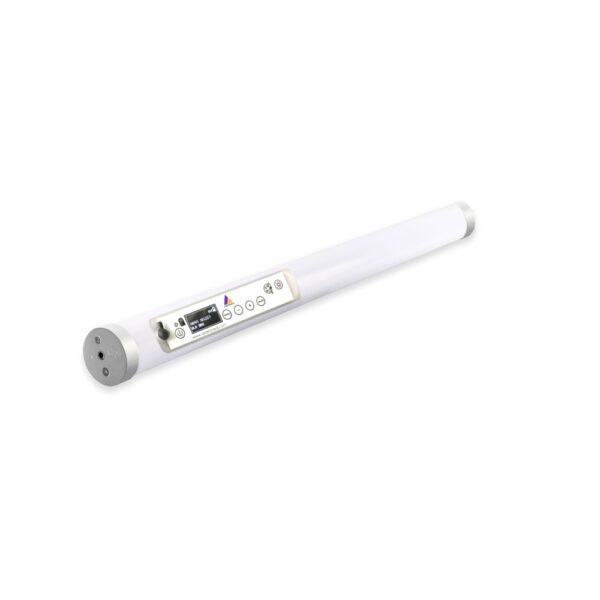

Astera – Helios Tube

Astera

Film lighting LED tube for TV and broadcasting

SKU: ASTHELIOS Categories: , , ,

Description

Helios Tube is an RGB – Amber – Mint LED lighting Tube that has all the features of the popular Titan Tube while offering a smaller format. It allows mounting in areas where a Titan Tube wouldn’t fit and also increases portability. This LED lighting Tube has 8 pixels, half the brightness of the Titan tube and just over half its length. Colours and brightness are perfectly matched to those of the Titan Tube’s.

Features

  • Detect all available lights, set them up, check their status, configure DMX addresses and DMX profiles.
  • Quickly build programs out of colors and effects, trigger them or make them match a beat.
  • Switch lights into power-saving standby and schedule them to wake up when the production starts.
  • The lights give visual and audible alarm and send notification to the AsteraApp if they are being moved during an event.
  • Set the length of your production and be sure that your lights won`t run out while still getting the maximum brightness.
  • Scrambled PWM technology to avoid flickering when filming.
  • This exclusive feature makes the light able to display the maximum brightness at all time and intensify non-white colors.
  • Auto BPM analyzes the beat and matches programs to it, flash buttons can trigger special effects while being held down.
  • Individually calibrated lights lead to 100% color consistency and exact color reproduction of color temperature and filter gels.
  • Adjust green/magenta during content creation to reduce postproduction work.
  • Switches to white light when AC power is cut to keep your event save
  • The AsteraApp™ is packed with many additional items and new features are frequently added via software update.

Additional information

Optical

Colors: Red, Green, Blue, Mint, Amber

Total LED power: 36W

Maximum power draw: 24W

TLCI: ≥96

CRI: ≥96

Luminous flux: 1340Lm

Emittance @1m: 393Lx

Strobe: 0-25Hz

Beam Angle: 120˚

Field Angle: 180˚

Pixels: 8

Electrical

Battery: LG Chem Lithium-ion

Battery Lifetime: 70% after 300 cycles

Battery Runtime: Up to 20 hours

LED Lifetime: 50.000 Hours

Charging time (nominal): 3 Hours

Input Voltage : 24V 1.25A

Control

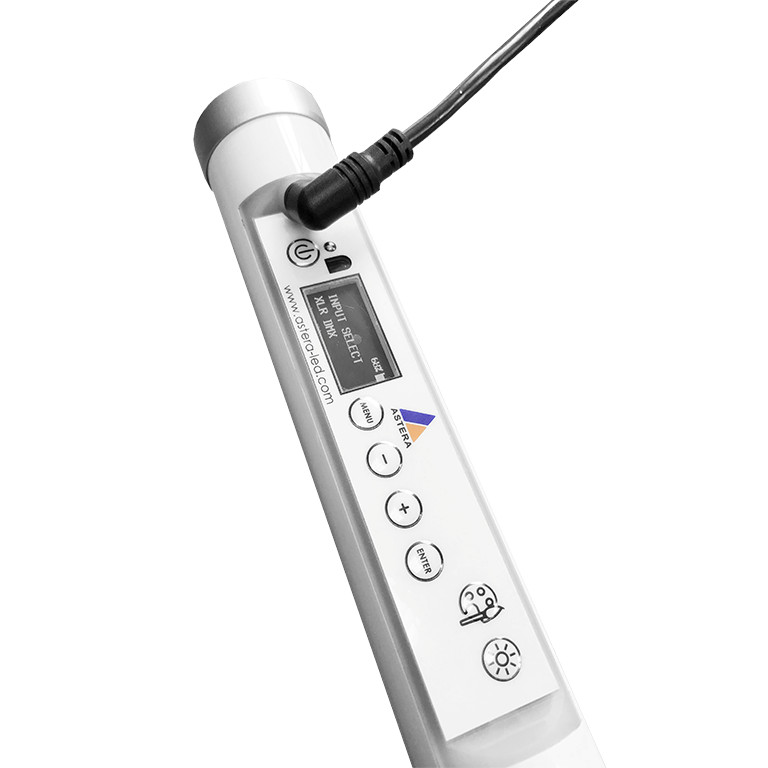

Backside Display with HSI control

Infrared

Wireless Modules: 865-870MHz, 902-928MHz, 2.4GHz

Range: 300m, 330 Yards

Wired DMX: supported via Astera PowerBox

Wireless DMX: CRMX & others, excluding W-DMX G5, City Theatrical

Construction

Housing: Polycarbonate, metal endcap

IP Rating: IP65

Relative humidity: 0-100%

Operating Temperature: 0-40 ˚C, 32-104 ˚F

Weight: 0.765kg, 1.68Lbs

Dimensions: Ø42 x 550mm, Ø1.6” x H22.7”
