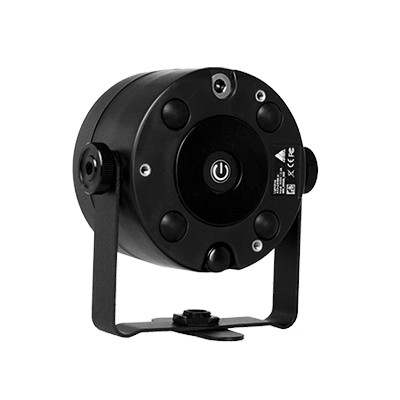

Astera – Ax3

Astera

Extremely compact IP65 RGBW battery powered puck light aimed at stage lighting and corporate events.

Description

The AX3 is a battery operated, easy to use IP65 RGBW puck aimed at stage lighting and corporate events. It can be used as uplight as well as hanging or standing spotlight and inside translucent objects, truss, etc. It is extremely compact and yet offers a high brightness paired with long battery runtime and range.

Features

  • Talkback+: Detect all available lights, set them up, check their status, configure DMX addresses and DMX profiles.
  • Filming Tools: Adjustable PWM frequency to avoid flickering, green/purple balance to minimize post-production work.
  • Scheduled stand-by: Switch lights into power-saving standby and schedule them to wake up when the event starts.
  • Seamless runtime: Set the length of your event and be sure that your lights won’t run out while still getting the maximum brightness.
  • TruColor calibration: 100% color consistency through any batch. It can hit exact color temperatures and reproduce standard filter gels.
  • DJ feature: Auto BPM analyzes the beat and matches programs to it, flash buttons can trigger special effects while being held down.
  • Emergency light: Switches automatically to white light and runs of its battery when AC power is cut off.

Additional information

LED Engine

RGBW

Colours

RGBW

Total LED Power

15 W

Luminous Flux 3200K

430 Lumens

Light Output 3200 K @ 2m

1 300 Lux

CRI (Ra)/ TLCI 3200- 6500 K*

≤88

Beam Angle

13°

Field Angle

22°

Strobe

0 – 25 Hertz

Pixels

1

Battery Runtime

up to 20 hours

Battery Lifetime

70 % after 300 cycles

Charging Time (nominal)

7 hours

DC Input

5 VDC – 2.5 A

DC Connector

5.5 mm x 2.5 mm

Wired DMX

No

CRMX Receiver

Built-in

BluetoothBridge BTB

Built-in

Wireless Protocols

CRMX, UHF, Bluetooth, Wifi

Wireless Range

CRMX/UHF up to 300 m / 330 yds Bluetooth up to 3 m / 3.3 yds

Infrared Control

Yes

Housing Material

Aluminium

IP Rating

IP65 (only with Charging Socket Cover (AX3-SP)

Ambient Operating Temperature

0 – 40 °C / 32 – 104 °F

Weight

0.68 kg / 1.4 lbs

Dimensions with bracket (L x W x D)

120 mm x 59 mm x 114 mm / 7.4” X 2.3” X 4.4”

Dimensions without bracket (Ø x H)

Ø95 mm x 59 mm / Ø3.7” x 2.3”

Mounting Options

Magnet, 3x M4 threads, Bracket (with 1x 3/8" – 16 UNC thread, 2x 1/4" 20 UNC threads)

Downloads

Data Sheet Download
User Guide Download
