Description

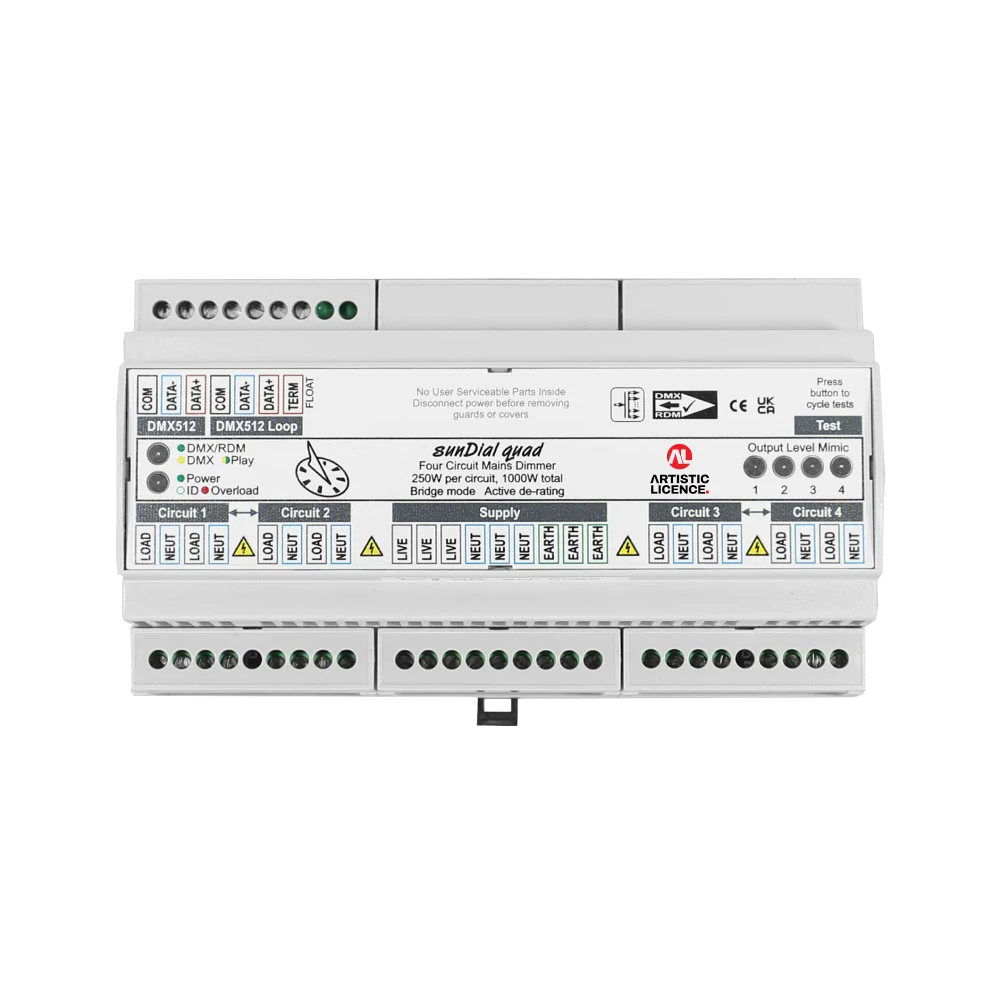

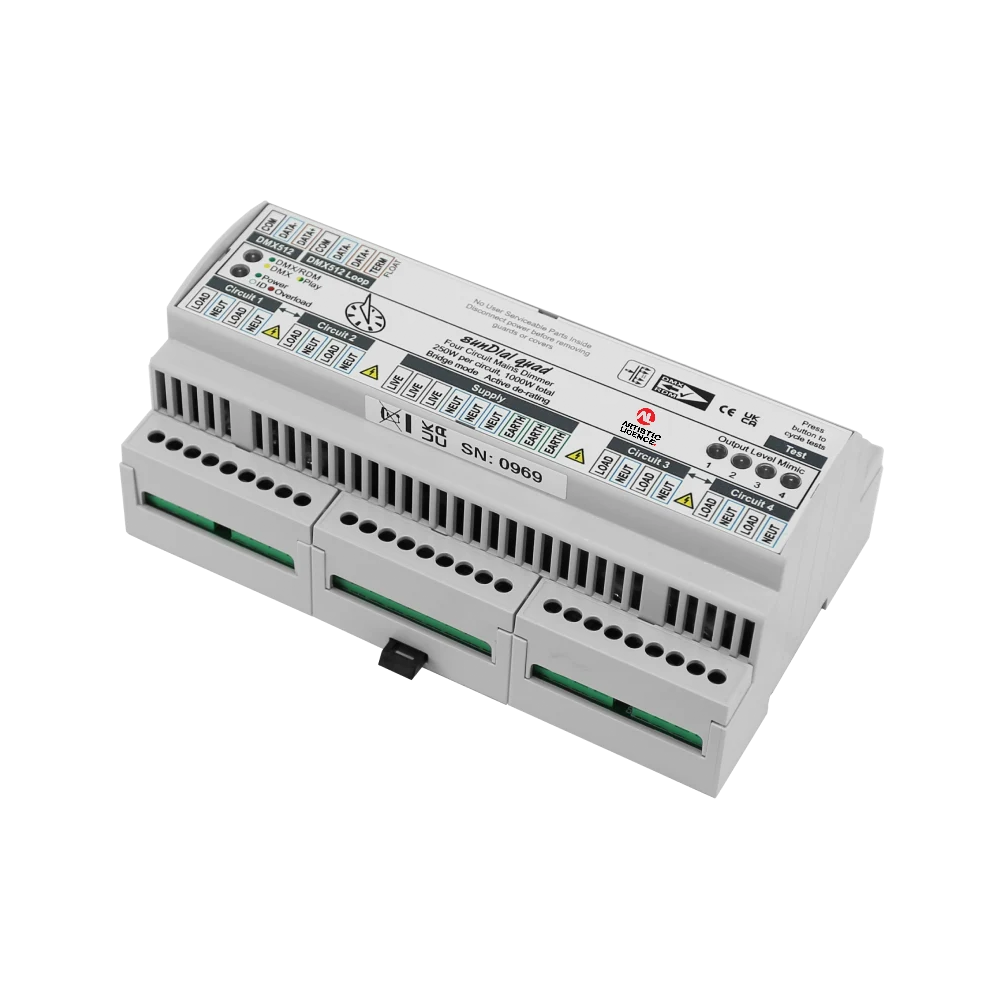

sunDial quad is unlike any trailing edge dimmer currently found on the market. The product’s ultra-high resolution internal dimming allows the small window of useable LED lamp dimming response to be spread out over the entire DMX512 level range. There are four editable dimming curves that can be selected via RDM on a per-channel basis.
Artistic Licence has also built a free database of lamp-specific dimmer curve files that are automatically generated by our in-house photometric analyser. Please download this from the resources tab. For ultimate control, customers can edit dimming curves and upload files (using DMX-Workshop, our free software management tool) to perfectly match chosen lamps.
sunDial quad also offers operation in high resolution mode (14-bit), using two DMX channels per dimmer.
Features
- Trailing edge mains dimmer
- DMX512/RDM controlled
- Scene playback
- Programmable data loss mode
- Compatible with dimmable LED replacement bulbs – perfect for ‘dim-to-warm’ fixtures
- Also suitable for dimmable CFL and incandescent sources
- 4 outputs, 250W per circuit
- Bridge mode provides 500W per pair of outputs
- 8-bit or 14-bit control
- Ships with 4 dimming curves, selectable on a per output basis via DMX-Workshop
- LED indication for DMX/RDM/playback, power, identify, outputs and fault conditions
- Convection cooled with active derating
- RDM sensors for temperature, frequency and power
- Automatic heat and current management
- CAT III rated for installation directly into distribution boards
- Generator tolerant design – stable operation in marine applications
- DIN Rail or surface mount
