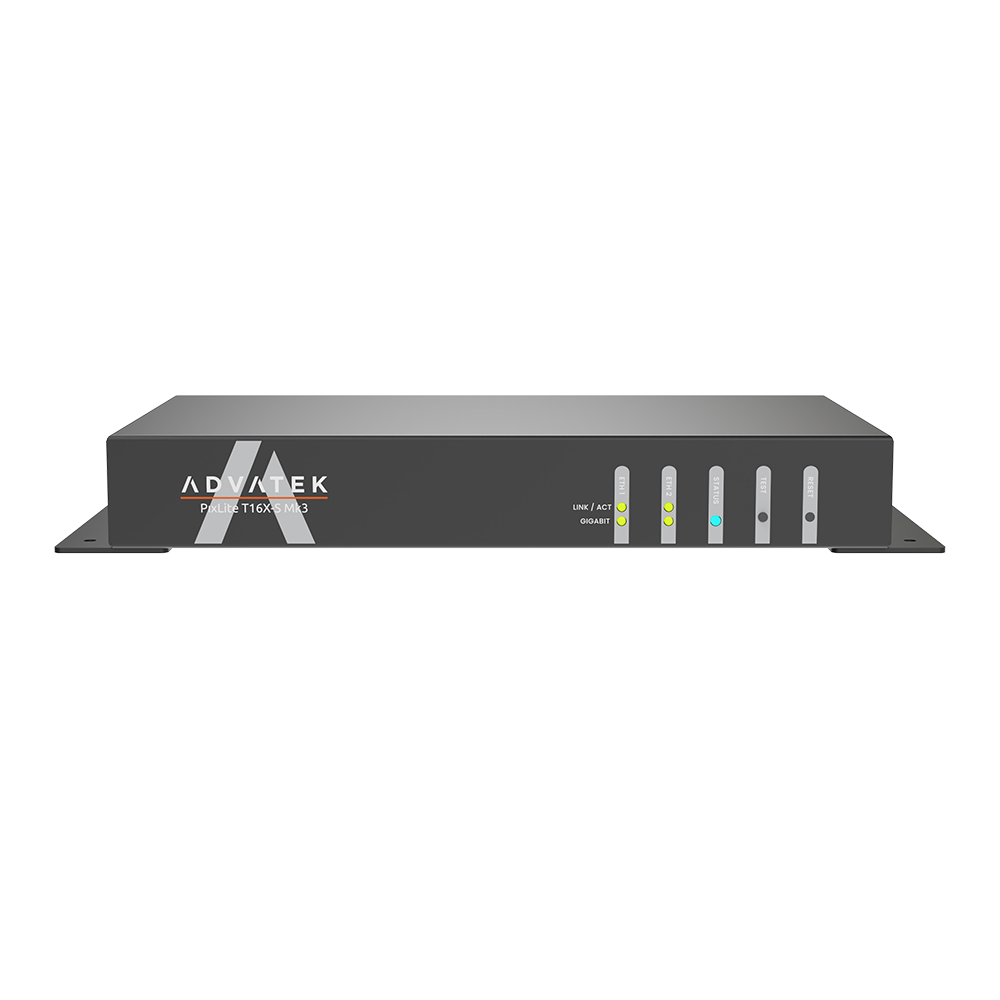

Advatek-T16X-S-Mk3-Front-FaceAdvatek-T16X-S-Mk3-Front-Face

Advatek – T16X-S Mk3

Advatek

The PixLite® T16X-S Mk3 is a powerful long-range pixel LED controller that joins Advatek’s bestselling T8-S Mk3 controller. This new model was developed with 16 output connectors to meet demand from our customers for an even more powerful long-range solution in a reliable, user-friendly system.

Clear

Description

The PixLite® T16X-S Mk3 is a powerful long-range pixel LED controller that joins Advatek’s bestselling T8-S Mk3 controller. This new model was developed with 16 output connectors to meet overwhelming demand from our customers for an even more powerful long-range solution in a reliable, user-friendly system.

Advatek equipment is proudly made in Australia for ultimate manufacturing quality control and is also covered by a five-year product warranty for your absolute peace of mind.

Features

  • 96 universes of Art-Net or sACN
  • Connect up to 16 R1 or R2 receivers
  • over 90+ pixel protocols supported
  • microSD for Advatek SHOWTime™
  • Auxiliary port for DMX512 In/Out
  • Configure using Advatek Assistant 3
  • Electrical fault protection on all ports
  • Five-year warranty and global certifications

Video

Advatek Innovation: PixLite® R1F-S and PixLite® T16-S Mk3

Advatek Innovation: PixLite® R1F-S and PixLite® T16-S Mk3 More Pixels in More Locations. Introducing the next-generation PixLite® R1F-S and T16-S, designed to revolutionize pixel control…

Additional information

Ethernet Ports

2 x 10/100/1000 Mbit/s

microSD Card Slot

Yes

Auxiliary Port

1 x RS485 Input/Output

1 x RS485 Input/Output

16 x RJ45

Dimensions

282 mm x 42 mm x 169 mm

Weight

1.32 kg

Enclosure Material

Aluminum

Mounting Options

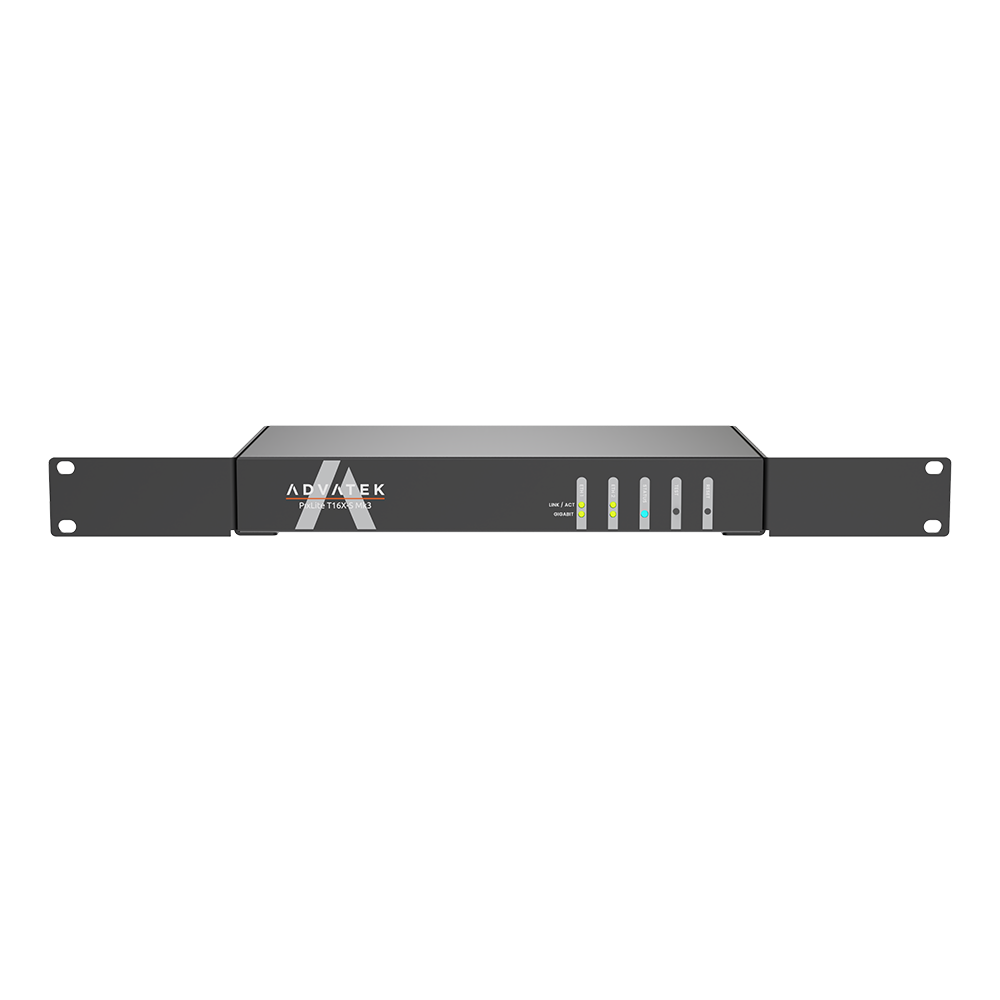

Direct Panel, Wall & Rack Mountable

Input Power

100V-240V AC

AC Fuse

1A M205

Ambient Operating Temperature

-10°C to +60°C

Downloads

Data Sheet Download
User Guide Download
