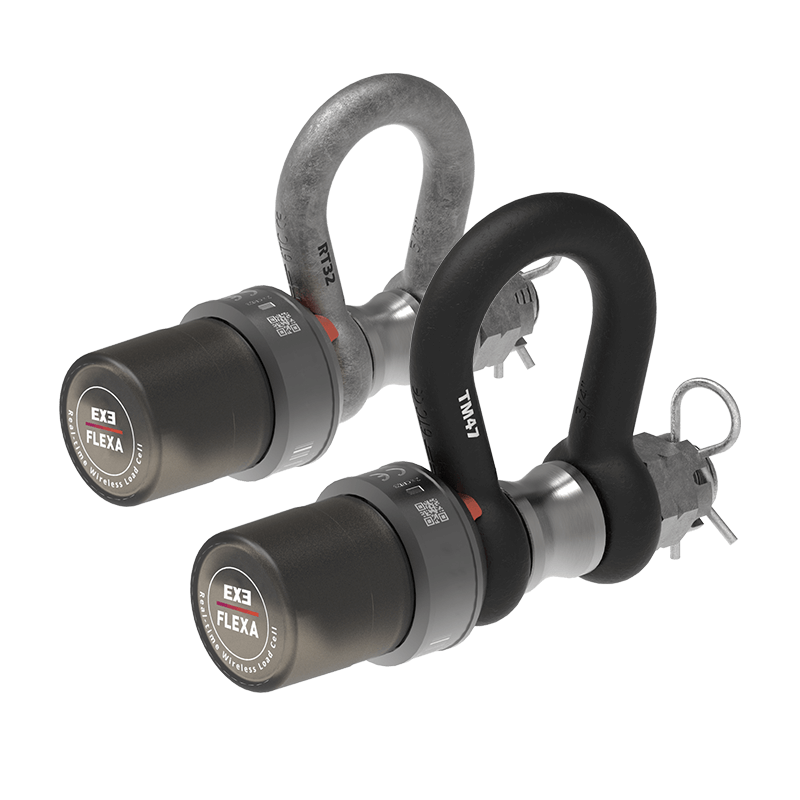

Real-Time – Shackles

A Revolutionary Approach to Wireless Load Cells

EXE have invested significant effort into the development of there wireless load cell module, focusing on performance, durability, and safety. The internal electronics and battery housing are fully enclosed within a double-layered, hermetically sealed shell—carefully engineered to isolate and protect the sensitive circuitry.

The shackles battery system features an exclusive, compact design inspired by camera industry standards, delivering stable performance and long service life. The cylindrical enclosure helps absorb shocks, while an integrated anti-rotation ring is built directly into the pin—keeping the upper part of the shackle completely free for unimpeded use.

This attention to detail ensures EXE wireless systems are not only robust and precise, but also practical for real-world rigging demands.

FW-CSH 3.25t

FW-CSH 4.75t

All protected, all simple

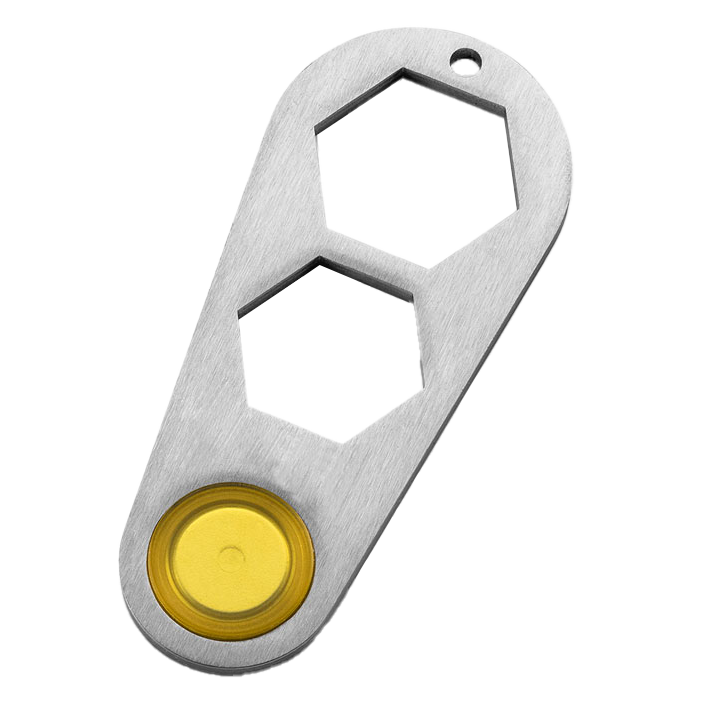

A magnetic key for switching on and off. The switch is a fully sealed magnetic reed. No tools needed to access the batteries, just unscrew the cap. The impact-resistant polycarbonate shell is semi-transparent to see the RGB multifunction LED.

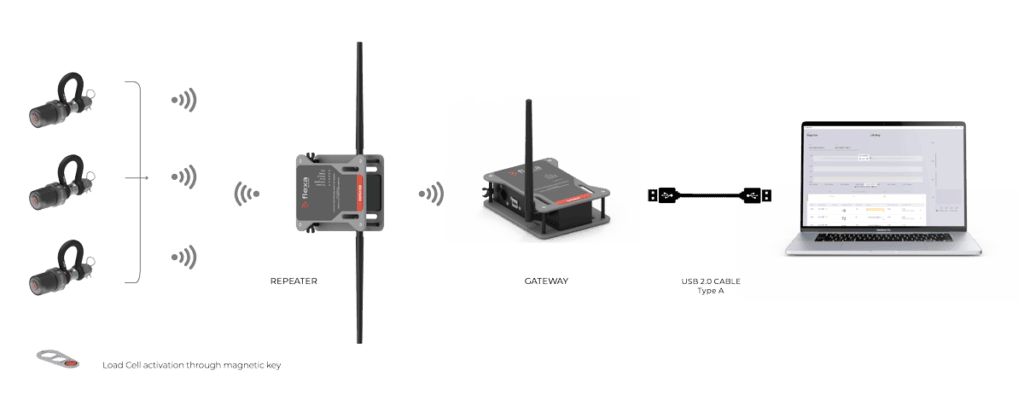

How Real Time Load Measurements Work

Readings are transmitted every second or every time the load exceeds the configured threshold in battery saving mode. Transmitting data between gateway, environmental conditions dependent but typically up to 700m in line-of-sight. This can be extended using up to 5 repeaters per gateway.

Signal Quality & Transmission Range

Radio transmission and environmental conditions. The distances calculated in line of sight on an open field are different from the real ones in presence of different obstacles. The graphs below show different ranges based on the environment in which the system operates.

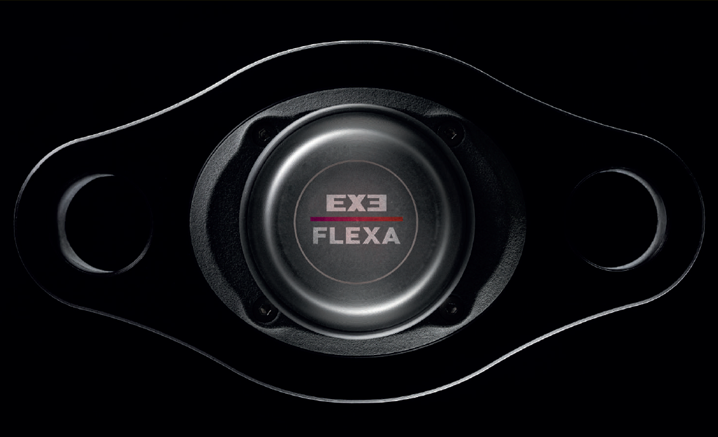

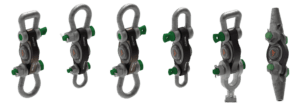

Real-Time – Dynacells

One component for a limitless range of applications. Precision, hardened eyes enable virtually any type of rigging hardware to be safely connected to create a live load monitoring system. The absolute load accuracy of the sensors refines reading tolerances over any load within ± 1% of current load or ±10 kg (whichever is the greater value).

FW-CDY 0.5t – For Professional Use

For loading capacities up to 500kg with the self-weight of a smartphone! A real pocket size cell with a stylish anodized aluminium body, only 25mm thick and 120mm between load centres.

FW-CDY 0.5t – Stainless-Steel

Designed for loads up to 5t with high level of accuracy. Self-weigh less than 1kg with 120mm between load centres. Capacity is increased without extra dimension, creating a compact, robust, and stylish solution for low- mid level live load monitoring in any environment.

How Real Time Load Measurements Work

Readings are transmitted every second or every time the load exceeds the configured threshold in battery saving mode. Transmitting data between gateway, environmental conditions dependent but typically up to 700m in line-of-sight. This can be extended using up to 5 repeaters per gateway.

Signal Quality & Transmission Range

Radio transmission and environmental conditions. The distances calculated in line of sight on an open field are different from the real ones in presence of different obstacles. The graphs below show different ranges based on the environment in which the system operates.
